15P - Safety Pattern Budenberg Pressure Gauge

15P Small Dial High Pressure Safety Service Gauge Budenberg Australia @ Procon Instrument Technology

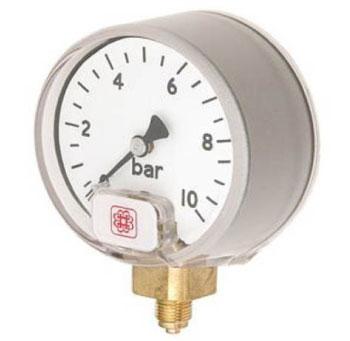

Small Dial Industrial Service Gauge

The Budenberg model 15P pressure gauge has been manufactured to meet the demand for small high-quality gauges designed for applications using gases, water or any liquid that does not attack brass and bronze.

The one-piece polycarbonate case with an integral window forms a solid baffle in front of the Bourdon tube and incorporates a full-diameter stainless steel blow-out back so that in the event of a tube failure through corrosion, explosion or gross pressure any vapour or debris is vented from the back of the case.

This Budenberb gauge has been designed for direct mounting onto the process pipework and comes with a grey inner sleeve to give a grey colour to the side of the case.

For oxygen applications, these gauges must be manufactured to ensure they are entirely free from oil and grease.

    contact us   for pricing and availability of the Budenberg 15P Pressure Gauge.



The Budenberg 15P Pressure Gauge is suitable for the following applications/industries

Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Food Beverage Pressure Gauge

Food & Beverage
Pressure Gauge

Budenberg 15P Specifications

 Size  63mm (2.5") & 80mm (3.15")
 Mounting  Direct
 Case & Bezel  One-piece Polycarbonate, Safety Pattern type case
 Scale Ranges
 0 to 300 mbar, upto 0 to 400 bar pressure
 Equivalent units of pressure /vacuum are available, and single & dual scales are available.
 Pressure Element
 Phosphor Bronze tube soldered to brass connection and end piece.
 Stainless Steel above 40 bar
 Stainless Steel below 1 bar
 Overload Protection  115%
 Pressure  Connection
 1/4" BSP as standard
 1/8" BSP & NPT as are available
 Accuracy
 CL:1 1.0% of FSD as defined in EN837-1
 Temperature
 Operating: -20 to +90°c
 Storage: -40 to +100°c
 For options for lower or higher operating temperatures, please contact our office
 Temperature Effect  Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius
 Environmental  IP54 as defined in EN 60 529
 Certification
 Individually calibrated with a unique serial number printed on the dial.
 Certificate of Conformity.
 Available Certification: BS EN 10204 3.1B Material Certification Point-to-Point Test Certification
 Traceability  All instruments are individually calibrated and have a unique Serial Number printed on the dial.
 Safety  All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.

Classic 15P Series Dial Specifications

 Size  63mm (2.5") & 80mm (3.15")
 Dial
 White Anodised Aluminium marked in black finish
 Option: Dual Scale, colour bands & sectors
 Customisation with Company Name & Logo also available
 Pointer
 Stainless Steel coloured Black
 Movement
 Brass Construction
 Options: Viscous Damped movement to overcome the effects of minor pressure pulsations and vibrations
 Window
 1 piece polycarbonate


15P Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 15P Pressure Gauge you can download the datasheet here
