17P-17B-17H - Safety Pattern Budenberg Pressure Gauges

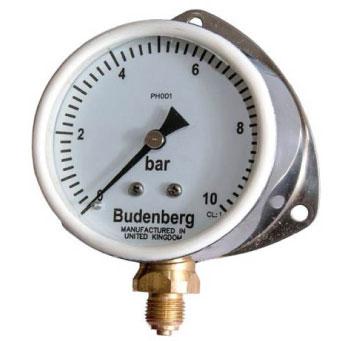

17P 17B 17H Small Dial 80mm Dial Stainless Steel Case OEM Gauge Budenberg Australia @ Procon Instrument Technology

Small Dial 80mm - Stainless Steel Case - OEM Pressure Gauge

The Budenberg model 17 series of pressure gauges have been manufactured to meet the demand for small high quality gauges designed for muliple applications except gases, (over 25 bar) to include water or any liquid that does not attack copper and bronze.

The instruments are available in 80mm dial size with either direct or surface mounting options. They are suitable for solvent laden or chemical laden atmospheres that could damage a polycarbonate case.

The case is polished stainless steel and the front window is retained by a ring of white Hytrel polyester. The window can be either glass or perspex depending on the application.

These instruments are produced to look exceptionally clean and bright in appearance and can be used in areas where appearance is a critical factor for aesthetics.



    contact us   for pricing and availability of the Budenberg 17 Series Stainless Steel Pressure Gauge.



Industries
Specifications
Dial Specifications
Download


The Budenberg 17 Series of Pressure Gauges are suitable for the following applications / industries



Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Power Generation Pressure Gauge

Power Generation
Pressure Gauge



Budenberg 17 Series  Specifications

Size 80mm (3.15")
Mounting Direct bottom & bottom-back or surface
Case & Bezel Stainless Steel polished case with Hytrel Polyester retiner (bezel)
Scale Ranges Up to 600 psi - Phospher Bronze Tube - Model 17P
Up to 4,000 psi - Beryllium Copper Tube - Model 17B
Up to 10,000 psi - High Pressure Stainless Steel Coil Tube - Model 17H
Pressure Element Dependent on range
Overload Protection Units will withstand up to 125% of FSD
Pressure Connection
1/4" BSP as standard (NPT also available)
1/8" & 3/8" BSP & NPT as are available
Also available with diaphragm seal assembly
Accuracy
CL:1 1.0% of FSD as defined in EN837-1
Temperature
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
Temperature Effect Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees celsius / t2 is the ambient temperature in degrees celsius
Environmental IP54 as defined in EN 60 529
Certification
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Available Certification: BS EN 10204 3.1 Material Certification Point to Point Test Certification
Traceability All instruments are individually calibrated and have a unique Serial Number printed on the dial.
Safety All units are manufactured to comply with EN837-1, O specification and other regulatory standards including PED. Blow-out vent design = S2 safety specification.



Classic 15L Series Dial Specifications

Size 80mm (3.15")
Dial
White Anodised Aluminium marked in black finish
Option: Dual Scale, colour bands & sectors
Customisation with Company Name & Logo also available
Pointer
Aluminium coloured Black
Movement
Brass Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations and vibrations
Window
1 piece polycarbonate



17 Series Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 17 Series Pressure Gauges you can download the data sheet here
