2400-A16 – Remote Station / Intelligent Multiplexer

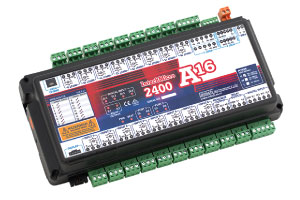

 Intech Instruments - 2400 A16 Remote Station Intelligent MultiplexerThe Intech 2100-A16 station has all the friendly features of a monitoring station. The Isolated Universal Analogue Inputs are software programmable using the user friendly MicroScan SCADA (Version 5.1 or later), or Station Programmer software.

Each input can be configured for any of the following inputs:

RTD Pt100/Pt1000, Thermocouple, mA, mV, V & Pulse/Digital. There is a convenient wide choice of spans plus Custom spans can be configured also. The accuracy does not alter when changing spans.

The analogue inputs on the 2400-A16 can be expanded up to 76 using the 2100-M Input Multiplexers.



All 2400-A16 stations come standard (Default ex factory calibration) with:

  • All Input Channels Configured to RTD Pt100 0~100°C
  • 4 Dedicated Digital Inputs
  • 2 Analogue 4~20mA Outputs
  • 2 Relay Outputs
  • RS485 or RS232 on Comms Port 2



Features of the Intech 2400-A16 Remote Station / Intelligent Multiplexer / Remote I/O

  • Up to 16 Isolated Universal Analogue Inputs, with Plug In Terminals
  • Each Input Individually Selected & Scaled
  • 16 Bit Resolution
  • Isolated Input for RTD, T/C, mA, mV, V & Pulse/Digital
    • RTD: Pt100/Pt1000, -200~320°C to -200~800°C / (-320~1560°F)
    • T/C: B, E, K, J, N, R, S, T, with CJC
    • mA: 0~20mA, 0~2.5mA
    • mV: -25~25mV to -200~200mV
    • V: 0~1V to 0~15V
    • Pulse/Digital: Meter pulses, Counting and Frequency. Max speed 2500Hz
  • Four Dedicated Digital, Isolated, Optocoupler Inputs
    • State or Count
    • Max speed 8000Hz
  • Two Analogue, Isolated, 4~20mA Outputs
  • Two Digital, Isolated, Relay Outputs
  • Comms Ports (also note the protocol information listed below):
    • Port 1: Isolated RS422/RS485 or Ethernet TCP/IP (option)
    • Port 2: Isolated RS232/RS485
    • USB programming port via XU-USB programming key
  • Embedded protocols, Auto Detecting:
    • MicroScan ASCII
    • Modbus RTU
    • Modbus TCP
  • RS422/RS485 Up to 1200m
  • Cost Effective Radio Installation
  • Cost Effective PC or PLC AI Expansion
  • Clock/Reset Drive up to Four 2100-M input expansion
  • Selectable Baud Rates
  • Integral MODBUS Bridge to MicroScan data: 256 analogue (words), and 128 digital (bits)
  • Average comms message, RS232, RS422, RS485, Ethernet = 100msec
  • 4 messages required to read all inputs
  • Internal memory refresh rate for all channels = 4 secs
  • Interface for 2400-R2 (16 & 32 Relay output expansion)
  • Stand-alone memory logging option with 2400-A16-SD-NET
  • Easy Programming
  • Programmable Station Number
  • Programmable Relay States – NO or NC
  • Comms Failure Time-out Using Relay 2
  • Comms TXE Delay Programming
  • Programming Information Retained on Power Down
  • Universal AC/DC Power Supply (three options to select)
  • Compact 35mm DIN Rail Mounting
  • Easy to Install

Specifications for the 2400-A16

TYPE 2400-A16
Inputs 1~16 Specifications: Analogue or Digital
 Inputs 1~16 Analogue Specifications: 16 Individually Isolated Universal or Non-Isolated RTD Analogue Inputs
   Input Resolution 16 Bits, 50,000 Steps Average (some ranges may differ)
   Input Isolation 2500Vac for 1 minute between All Input Channels
   Voltage Input Specifications:
      Input Impedance >500KΩ on all ranges
      mV Maximum Over-range 3Vdc Continuous
      V Maximum Over-range 24Vdc Continuous
      mV Range -200~200mV
      V Range 0~1V, 0~15V
      Accuracy 0.1% FSO Max
      Linearity and Repeatability 0.1% FSO Max
      Channel Separation 0.001% Max
      Ambient Drift 0.003%/°C FSO Typical
      Noise Immunity (CMRR) 160dB Tested @ 300Vrms 50Hz
      RF Immunity 1% effect FSO Typical
   Current Input Specifications:
      Minimum Recommended Span 0~1mA (gives 1000 steps on output)
      Input Impedance 45Ω
      Maximum Over-range Protected by PTC Up to 24Vdc Max
      mA Range 0~20mA (4~20mA)
      Accuracy 0.1% FSO Max
      Linearity and Repeatability 0.1% FSO Max
      Channel Separation 0.001% Max
      Ambient Drift 0.003%/°C FSO Typical
      Noise Immunity (CMRR) 160dB Tested @ 300Vrms 50Hz
      RF Immunity 1% effect FSO Typical
   Thermocouple (T/C) Input Specifications:
      Thermocouple Types B, E, J, K, N, R, S, T
      Input Impedance >500KΩ
      T/C Lead Resistance 100Ω Max
      Cold Junction Compensation. -10~60°C
      CJC Drift 0.02°C/°C For Installation Upright
      Accuracy 0.1% of FSO ±1°C Typical
      Sensor Fail Upscale or Downscale Selectable (Upscale Default)
      Type B Range 0~1800°C (30~3270°F)
      Type E Range -200~800°C (-320~1470°F)
      Type J Range -200~1000°C (-320~1830°F)
      Type K Range -200~1300°C (-320~2370°F)
      Type N Range -200~1300°C (-320~2370°F)
      Type R Range 0~1700°C (30~3090°F)
      Type S Range 0~1700°C (30~3090°F)
      Type T Range -200~400°C (-320~750°F)
   RTD Input Specifications:
      Pt100 RTD Type 3 Wire Pt100 RTD DIN 43760:1980 Standard Input
      Pt1000 RTD Type 3 Wire Pt1000 RTD Standard Input
      Sensor Current 0.6mA Continuous
      Lead Wire Resistance Pt100: 10Ω/wire Max
Pt1000: 5Ω/wire Max
0.1% FSO Offset Error per Ω of Lead Resistance
      Sensor Fail Upscale or Downscale Selectable (Upscale Default)
      Ambient Drift 0.003°C/°C Typical
      Accuracy 0~300°C ±0.1°C
0~850°C ±0.3°C, Isolated Channels Only
      Resolution 0.01°C for -200~250°C, (-140~210°F)
0.1°C for -200~850°C (-320~1560°F), Isolated Channels Only
   Inputs 1~16 Pulses & Frequency: Meter Pulses, Frequency, Counter or On/Off State Inputs
      Input Type Clean Contact, Open Contact - NPN, PNP
      Accuracy ±0.5%
      Frequency Range 0~2500Hz
      Frequency Resolution 0.1Hz
      Fast Counter Range 0~2500Hz
      Maximum Amplitude 0~5Vdc
      Debounce 0~50Hz Max
      Counter Register Output 32bit
Dedicated Digital Input 1~4 Specifications: 4 Opto Isolated Digital Inputs with LED Indication On Each Input
      Applications Meter Pulses, Frequency, Counter or On/Off State Inputs
      Functions Up Count On Each Pulse
      Input Voltage 5~30Vdc
      Threshold 4.6V typical
      Load
@ 5V -  1.1mA per Channel
@ 24Vdc -  7.0mA per Channel
      Counter Register Output 32bit
      Frequency Range 0~8000Hz
      Frequency Debounce 5msec
      Debounce Counter Range 0~100Hz
2400-A16 Output Specifications.
   Dual Analogue Outputs Source: 2 Isolated Analogue Outputs (not isolated from each other)
      mA Range 4~20mA Only
      Resolution 12bit, 4096 steps
      Output Drive 500Ω Max @ 24V Supply
   Relay Outputs: 2 Isolated Relays with LED Indication On Each Output
      Functions 2 on Board Controllers (16 with 2400-R2), can be used as Set Point (SV),
Switching Differential, Auto/Manual, Manual Output Setting, Dual Action Control, Single Action Control, Heat/Cool, Cool Only, Heat Only
      Contact Material Gold Clad Silver
      Relay Ratings 30Vdc, 3A Max
      Approved to Standard UL
2400-A16 General Specifications.
   Comms Ports:
Port 1 - RS422/RS485
Port 2 - RS232/RS485
      Ethernet TCP/IP Port (optional) Lantronix XPort® (Replaces Comms Port 1)
      Data Rate 9600 (MicroScan), 19200, 57600 or 115200 baud
      Parity bit Even or None (MicroScan)
      Protocols ASCII. Std (MicroScan), Modbus RTU/TCP Auto Detect
   Power Options: 10VA
      Factory set:
H -  85~265Vac, 95~370Vdc
M -  24~48Vac, 17~72Vdc
L -  10~30Vdc (recommend 1A power supply)
   Safety Compliance:
      EMC Emissions EN55022-A
      EMC Immunity EN50082-1
      Safety EN60950
      Mains isolation 250Vac
      Isolation test voltages:
Mains to output -   3000Vac, 50Hz
Mains to earth -  1500Vac, 50Hz
   General Specifications:
      Accurate to ≤ ±0.1%/°C FSO typical
      Linear Repeatability ≤ ±0.1%/°C FSO typical
      Ambient drift ≤ ±0.01%/°C FSO typical
      Isolation Test Voltages Between Input and Output: 3750Vac for 1min
      Response Time 400msec Typical (10~90% 300msec Typical)
      Noise Immunity 125dB CMRR Average (2.0kVdc Limit)
      RF immunity < 1% effect FSO typical
      Operating temperature 0~60°C
      Storage temperature -20~80°C
      Operating humidity 5~85% RH max
      Housing: Material ABS Inflammability V0 (UL94)
         Mounting 35mm symmetrical DIN rail
         Dimensions L=255, W=145, H=60mm

Product Range, Codes and Accessories for the 2400-A16

Code Specifications
2400-A16-I16-485-H

16 Isolated Universal Input Channels, Port 1 Fitted with RS422/RS485 Comms, 85~265Vac, 95~370Vdc Power Supply.

2400-A16-I8-485-H

8 Isolated Universal Input Channels, Port 1 Fitted with RS422/RS485 Comms, 85~265Vac, 95~370Vdc Power Supply.

2400-A16-I16-485-M

16 Isolated Universal Input Channels, Port 1 Fitted with RS422/RS485 Comms, 24~48Vac, 17~72Vdc Power Supply.

2400-A16-I8-485-L

8 Isolated Universal Input Channels, Port 1 Fitted with RS422/RS485 Comms, 10~30Vdc Power Supply.

2400-A16-I16-485-L

16 Isolated Universal Input Channels, Port 1 Fitted with RS422/RS485 Comms, 10~30Vdc Power Supply.

2400-A16-I8-NET-H

8 Isolated Universal Input Channels, Port 1 Fitted with Ethernet TCP/IP Comms, 85~265Vac, 95~370Vdc Power Supply.

2400-A16-I16-NET-H

16 Isolated Universal Input Channels, Port 1 Fitted with Ethernet TCP/IP Comms, 85~265Vac, 95~370Vdc Power Supply.

2400-RS232

5m RS232 cable for 2400-A16

XU-USB

USB Programming Key

How to order your 2400-A16

Series + Option + Power Option



ITEM CODE     DESCRIPTION
SERIES 2400-A16-
Input Channel Options I16- 16 Isolated Universal Input Channels
I8- 8 Isolated Universal Input Channels
Comms Options (Port 1) 485- Port 1 Fitted with RS422/RS485 Comms
NET- Port 1 Fitted with Ethernet TCP/IP Comms
Power Supply Options H 85~265Vac, 95~370Vdc
M 24~48Vac, 17~72Vdc
L 10~30Vdc
