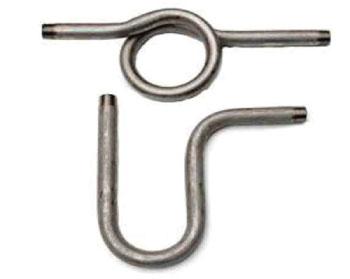

CMT Pressure Gauge Syphons

CMT Pressure Gauge Syphons Budenberg Australia @ Procon Instrument Technology

Protect your pressure gauge with a CMT Syphon

The Budenberg Syphons have been designed to meet the demand for protection of instruments such as pressure gauges, where the applications have high temperatures that can cause damage or inaccurate readings due to elevated temperatures.

They collect condensate from the high temperature media inside the syphon, thus preventing direct contact with the pressure elements and dissipates the heat.

Upon installation the syphon is normally filled with the condensate liquid. In the case of steam, water is used.

The CMT Syphons are suitable for all media that is resistant to 316 Stainless Steel material.

    contact us   for pricing and availability of the Budenberg CMT Pressure Gauge Syphon




Industries
Specifications
Download


The Budenberg CMT Pressure Gauge Syphones are suitable for the following applications / industries

Oil and Gas Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Oil & Gas
Pressure Gauge
Petrochemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Petrochemical
Pressure Gauge
Chemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Chemical
Pressure Gauge
Power Generation Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Power Generation
Pressure Gauge
Waste Water Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Water & Waste Water
Pressure Gauge
Pharmaceutical Pressure Gauge Budenberg Australia @ Procon Instrument Technology Pharmaceutical
Pressure Gauge



The Budenberg CMT specifications

Material
Body - 316 Stainless Steel as standard
Other materials available on request
Connection Size
1/2" NPT Male / Male Testing
½” BSP Male / Male with locknut
3/8” NPT Male / Male
3/8”BSP Male / Male with locknut
Adaptors available for other thread configuration trace back to the original mill certificate. Therefore when requested each batch can be supplied fully in accordance to EN 10204 3.1b
Pressure Ranges
Based upon 12" Syphon
Maximum Pressure up to 80 Bar up to 300 Deg C Maximum
Maximum Pressure up to 100 Bar up to 120 Deg C Maximum
Maximum Pressure up to 400 Bar up to 60 Deg C Maximum
Temperature
Based upon 12" Syphon
Maximum Temperature up to 300 Deg C up to Maximum 80 Bar
Maximum Temperature up to 120 Deg C up to Maximum 100 Bar
Maximum Temperature up to 60 Deg C up to Maximum 400 Bar
Testing
100% pressure hydrostactically tested
Traceability Each syphon is stamped with unique trace- code to enable us to trace back to the original mill certificate. Therefore when requested each batch can be supplied fully in accordance to Based on 1/2" Syphon EN 10204 3.1b
Options Carbon Steel, and other connections



CMT Specification Sheet Download

To view all the information on the Budenberg CMT you can download the data sheet here
