505-BC03 Frequency Input Batch Controller by Contrec

505 BC01 Dual Stage Batch Controller by ContrecThe Contrec 505 BC03 Batch Controller is a dual-stage batch controller for reliable measurement of preset quantities using a mass frequency input. It can be used as a single or dual-stage controller and is suitable for fast batch applications providing the user with clear local readout and can be controlled via communications in more automated systems.

When access is authorised there is quick access to commonly used preset values directly from the front panel. Automatic overrun compensation caters to system delays such as valve closure for precise volumes.

The 505 BC03 instrument is compatible with a wide range of flowmeter frequency outputs, including millivolt signals, reed switches, Namur proximity switches, and pulse trains via its smart front-panel program selection.

505 BC03 Dual Stage Batch Controller features

  • Tailored for volumetric frequency flow input
  • Single or Dual stage control
  • Quick access to common batch quantities
  • No-flow, leakage and overflow error detection
  • Remote RUN/STOP/RESET
  • Allows for non-linear correction
  • Storage of 100 transactions with time and date stamp
  • Selection of second language and user tags
  • Selectable protocols on serial ports including Modbus RTU and Printer output
  • Backlit display with LCD backup

Displayed Information

The front panel display shows the current values of the input variables and the results of the calculations. A list of the variables for this application and their type (total or rate) is shown at the end of this document.

The instrument can be supplied with a real-time clock for storage of up to 100 transactions with time and date stamps.

Communications

There are two communication ports available as follows:

  • RS-232 port
  • RS-485 port

The ports are available for remote data reading, printouts, and for initial application loading of the instrument.

Retransmission & Control Outputs

The instrument can retransmit any main menu variable. The digital outputs can retransmit totals as pulses or operate as logic levels for control or error outputs. If the instrument has the advanced option, it outputs rates as a 4-20 mA signal.

Relay Outputs

The relay outputs 1 and 2 are used to control the flow of product for each delivery. These contacts are normally open and can be used to drive external relays, valves, pump circuits, etc.

Software Configuration

The instrument can be further tailored to suit specific application needs including units of measurement, custom tags, second language or access levels. A distributor can configure these requirements before delivery. Instrument parameters including units of measurement can be programmed in the field, according to the user access levels assigned to parameters by the distributor.

All set-up parameters, totals, and logged data are stored in non-volatile memory with at least 30 years of retention.

Calculations for the 505 BC03 Batch Controller

The total and flowrate are derived from accurately measured frequency and the number of received pulses.

volume = pulses / k-factor

volume flow = frequency / k-factor

Automatic overrun compensation calculates the new valve closure point to ensure correct delivery by averaging the overrun amount from the last three complete batches.

The overrun compensation value is valid for a new preset value provided the stored overrun is less than 20% of the new preset.

505 BC03 Specifications

 Operating Environment  Temperature
 0°c to +60°c (conforma coating)
 +5°c to +40°c (no coating)
 Humidity
 0 to 95% noncondensing (conformal coating)
 5% to 85% noncondensing (no coating)
 Power Supply

 95 - 135V AC or 190 - 260V AC    or   12 - 28V DC

 Consumption  6W (typical)
 Protection  Sealed to IP65 (Nema 4X) when panel mounted
 Dimensions  147mm (w) X 74mm (h) X 167mm (d)
 Display       Type  Backlit LCD with 7-digit numeric display and 11-character alphanumeric display
 Digits  15.5mm high
 Characters  6mm high
 LDC Backup  Last data visible for 15 minutes after power down
 Update Rate  0.3 second
 Non-volatile Memory   Retention  > 30 years
 Data Stored  Setup, Totals, and Logs
 Approvals   Interface  CE compliance
 Data Stored  IECEx, ATEX, and CSA approved enclosures available for hazardous area
 Real Time Clock (optional)  Battery Type  3 volts lithium button cell (CR2032)
 Battery Life  5 years (typical)
 Fequency Input (general)   Range  0 to 10kHz
 Overvoltage  30V maximum
 Update Time  0.3 seconds
 Cutoff Frequency  Programmable
 Configuration  Pulse, coil or NPS input
 Non-linearity  Up to 10 correction points
 Pulse  Signal Type  CMOS, TTL, open collector, reed switch
 Threshold  1.3 volts
 Coil  Signal Type Turbine and sine wave
 Sensitivity 15mV p-p minimum
 NPS  Signal Type  NPS sensor to Namur standard
 Remote Logic Inputs  Signal Type  Voltage-free contact, open collector
 Relay Output   No. of Outputs  2 relays
 Voltage  250 volts, AC, 30 volts DC maximum
 Current  3A maximum
 Communication Ports  Ports
 RS-232 port
 RS-485 port
 Baud Rate  2400 to 19200 baud
 Parity  Odd, even or none
 Stop Bits  1 or 2
 Data Bits  8
 Protocols  Modbus, RTU, Printer*
 Transducer Supply  Voltage  8 to 24 volts DC, programmable
 Current  70mA @ 24V, 120mA @ 12V maximum
 Protection  Power limited output
 Pulse/Digital Output   Signal Type  Open collector, non-isolated
 Switching  200mA, 30 volts DC maximum
 Saturation  0.8 volts maximum
 Pulse Width  Programmable: 10, 20, 50, 100, 200 or 500ms
 4-20mA Output (optional)  Supply  24 volts DC internal, non-isolated
 Resolution  0.05% full scale
 Accuracy
 0.05% full scale (20°c)
 0.1% (full temperature range, typical)
Important: Specifications are subject to change without notice
*Printer protocol is available only if the RTC option is installed.

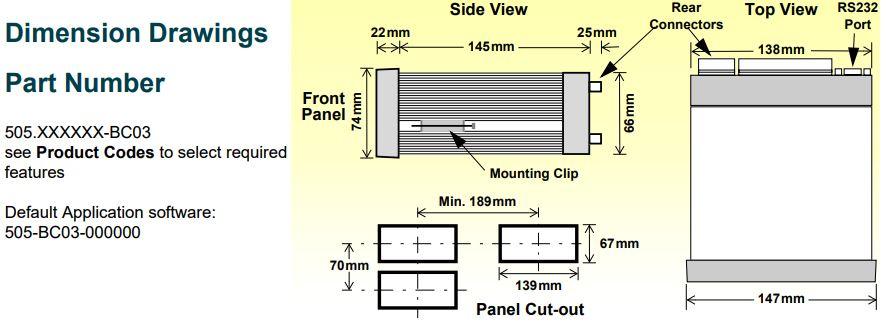

505 BC03 Drawings for product dimensions

Contrec 505 BC03 Frequency Input Batch Controller Drawings
