InnovaSonic 203 Clamp-On Ultrasonic Water Flow Meter

InnovaSonic 2013 Ultrasonic Water Flowmeter by Sierra InstrumentsUltrasonic Flowmeter for Accurate Results

The InnovaSonic® 203 liquid flow meter from Sierra Instruments has been optimised for customers who are looking for high performance, but need a lower-cost, less feature-rich option for dedicated clamp-on ultrasonic metering. The 203 digital liquid flow meter optimises the measurement of water as it flows in HVAC, irrigation, and other liquid applications.

  • High performance at an affordable price
  • Simply clamp on the outside of the pipe for easy setup
  • Save time with no pipe-cutting or process shutdown
  • For fast delivery, buy online, next-day shipment
  • Flexible rent or Rent-2-Own programs

This economical ultrasonic liquid flow meter delivers a highly accurate and repeatable flow measurement for liquids at an economical price. It is ideal for pipes up to 1200mm (48 inches) in diameter. The 203 promises accuracy to +/-1.0% of reading, repeatability of +/-0.3% of reading, and a temperature range of 0°C to 60°C. Another added feature is the 203 offers lower power consumption while keeping high reliability at a very competitive price.

The easy-to-read display and dual-function quick keys make setup quick and simple. The 203 also features a programmable frequency output, a relay output, and a programmable current loop output. RS-485 and Modbus RTU are standard.

The InnovaSonic 203 is packaged in a lightweight polycarbonate IP 65 housing and includes clamp-on encapsulated IP 68 sensors that are easy to install and require no pipe cutting, reducing installation and labor costs.

InnovaSonic 203 suitable applications

  • Cooling and heating fluid measurements
  • Water and wastewater measurements
  • Leak detection in piping systems
  • Monitoring and controlling of HVAC systems
  • Contactless product recognition
  • Interface detection
  • Automated process control



InnovaSonic 203 Ultrasonic Flow Meter benefits

  • Designed for water and general liquid flow metering applications Tolerant of liquids with small amounts of air bubbles or suspended solids
  • No moving parts to clog or fatigue like turbine meters
  • Transducers clamped to the outside of the pipe
  • Permanent or temporary installations
  • Immune to the process compatibility concerns
  • Install meter during plant operations
  • No process shut-downs, no leakage risks
  • Operational safety and robustness
  • Ideal for large line sizes
  • Low maintenance, no moving parts, robust construction
  • High zero stability, nearly drift free
  • Mounting kit included to lock transducer into place
  • Modular electronics enabling field upgrades
  • SD card data logging capability
  • Large display with push buttons, user-friendly menu
  • Transducers are matched pairs and temperature compensated
  • Field validation/configuration to ensure operating performance
  • Daily, monthly, and yearly totalized flow rate
  • Positive, negative, and net flow totalizers (with user-selectable scale factors)
  • Configurable pulse, analog, and frequency outputs
  • Fully field configurable
  • Digital communications: RS232, RS485, Modbus RTU

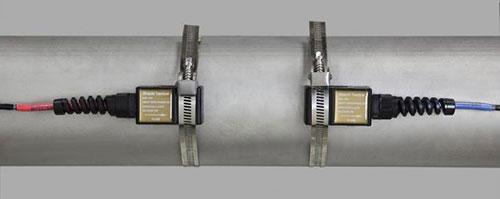

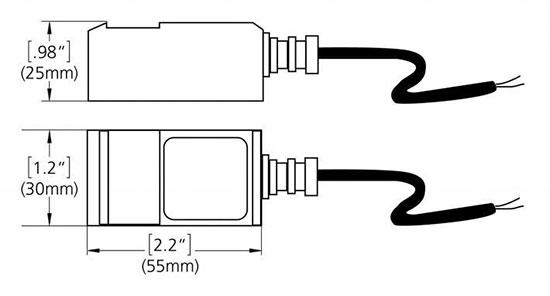

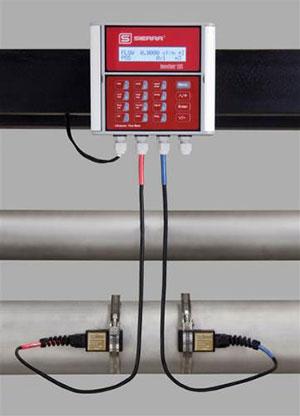

InnovaSonic 203 front view clamp on transducers  InnovaSonic 203 transducersInnovaSonic 203 side view clamp on transducers

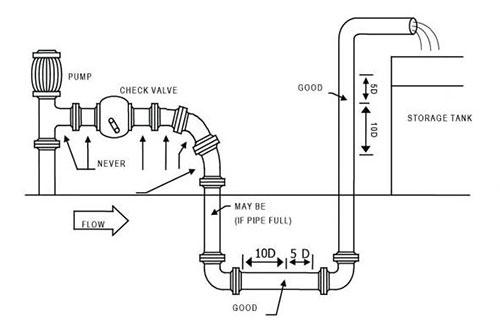

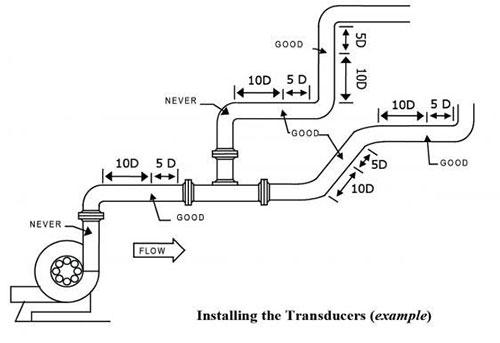

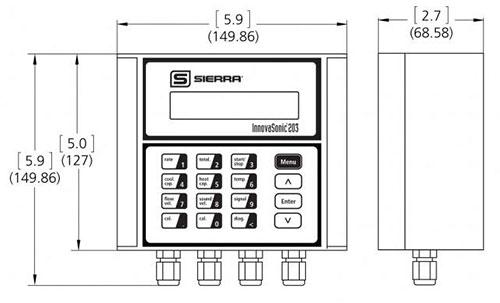

InnovaSonic 203 transducer installation example     InnovaSonic 203 transducer installation for pump storage tank       InnovaSonic 203 transmitter dimensional drawing



InnovaSonic 203 Document Downloads

Download the DATA Sheet



  • Flow Type: Liquid Flow Meters
