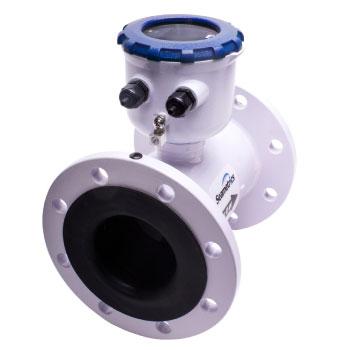

iMag 4700 Magnetic Flow Water Meter by Seametrics

iMAG 4700 Battery Powered Flanged In-line Magmeter FlowMeter SeametricsBattery Powered Flanged In-line Magmeter with one pulse output

The iMAG 4700 is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 3” to 12” pipes and is suitable for use in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications.

Minimal straight pipe requirements allow the iMAG-Series of magmeters to be used in piping configurations where there is little space between the meter and an elbow. The Seametric iMAG-Series meters are CE certified, certified to NSF/ANSI standard 61, and are rated IP68 for applications where the meter may be operated underwater to a depth of at least 10 feet (3 meters) continuously.

The display can be meter mounted or remote, and both rate and total indication are standard. Rate and total units and pulse scaling can be set via the front panel touch keypad by the user. Bidirectional flow reading is standard with totals available in forward, reverse, net flow, batch forward flow, and batch reverse flow. Batch totals can be reset.

A power/output cable allows outputs for use with a variety of Seametrics and other displays and controls for remote reading and telemetry applications. The pulse output is standard on all models and 4-20mA passive current loop is standard on the iMAG 4700p. In addition, 4-20mA loop, HART protocol, high-speed digital, and Modbus® protocol outputs are optional on the externally powered units, depending on the model.

Applications: Water & Wastewater Treatment, Municipal, Pump skids, Pump stations, Packaged plants, Filtration systems, Reclaimed water, Hydraulic fracturing.



Features

  • Easy setup
  • Minimal straight pipe
  • Mounted or remote rate & total
  • Tamper-evident seal
  • Cerfified to NSF/ANSI standard 61
  • IP68 rated
  • No Moving Parts

Available iMAG series models

  • iMAG 4700
  • iMAG 4700p
  • iMAG 4700r

 Pipe Sizes  76.2mm (3”), 101.6mm(4"), 152.4mm(6"), 203.2mm(8"), 254mm(10"), 304.8mm (12”)
 Flanges  68kg (150lbs)
 Pressure  150 psi (10.3 bar) line pressure
 Operating Temp  -12˚ to 60˚C
 Storage Temp  -40˚ to 70˚C
 Accuracy  ±0.75% of reading on iMAG 4700p and 4700r (±1.0% iMAG 4700), ±0.025% of full-scale flow from low flow cutoff to maxi. flow rate of 10 m/sec
 Low Flow Cutoff  0.5% of the maximum flow rate
 Material
 Body (3") - Ductile cast iron, powder coated
 Body (4"-12") - Welded steel, epoxy-coated
 Liner (3") - Noryl®
 Liner (4"-12") - Santoprene flange/Polypropylene liner body
 Electronics Housing - Powder-coated diecast aluminum
 Electrodes - 316 stainless steel
 O-ring (3") - EPDM
 Display  Refer to Data Sheet
 Power
 DC Power - 9-36 Vdc @ 250 mA max, 30 mA average
 Battery Backup - DC powered units: Two lithium 3.6V ‘D’ batteries, replaceable. AC-powered units: One 9V alkaline battery, replaceable.
 AC Power (AG3000r & AG3000p) - 85-264Vac, 50/60Hz, 0.12A
 Battery (AG3000) - One lithium 7.2V ‘D’ size battery pack, replaceable.
 Scaled Pulse Output
 Signal - current-sinking pulse, isolated, 36 Vdc at 10 mA max
 Pulse Rates - User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of the pulse period with a minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max.

 Options

 4-20mA Current Loop - Isolated, passive, 24Vdc, 650 Ω maximum current loop
 HART/4-20mA - HART protocol over 4-20mA line
 High-Speed Digital Output (AG3000 & AG3000p only) - Isolated, open collector, 24 Vdc
 Serial Communications -  Isolated, asynchronous serial RS485 (Reconfigurable for RS232 or 3.3V CMOS), Modbus® RTU protocol (factory selectable)
 Cable
 Power/Output Cable - 20ft (6m) standard length polyurethane jacketed cable—for power and outputs (lengths up to 200’ available).
 Remote Display Cable (AG3000r) - 20ft (6m) standard length polyurethane jacketed cable—for connection between meter and remote display (lengths up to 200’ available).
 Conductivity  >20 micro siemens/cm
 Empty Pipe  Detection  Hardware/software, conductivity-based
 Regulatory  CE (EN 61326), 4”-12” certified to NSF/ANSI standard 61 60°C (140°F); 3” certified to NSF/ANSI standard 61 Cold Water 23°C (73.4°F)
 Environmental  NEMA 6P, IP68 (10ft (3m) depth, continuously)

Modbus is a registered trademark of Schneider Electric.
*Specifications are subject to change. Please consult our website for the most current data
