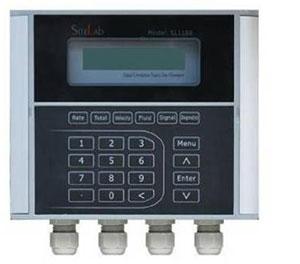

SL1188 Industrial Transit Time Flowmeter by SiteLab

SL1188 Industrial Transit Time Flowmeter from SiteLabThe SL1188 from SiteLab Industrial Transit Time Flowmeter incorporates the latest developments in digital signal processing to deliver highly accurate and repeatable flow measurements for a wide variety of liquids and pipe sizes.

It has sophisticated electronics coupled with powerful ultrasonic transducers to make this universal transit-time flow meter the top choice of industry leaders.

An easy-to-read display and clear, user-friendly menu selections make using the instrument simple and convenient. Quick key buttons for flow, totalized flow, velocity, fluid, signal, and diagnostics make setup and data collection even easier. High-temperature clamp-on and insertion options are available, making the unit more flexible. PCA’s inside the meter has been modularized, enabling field swap out for repairs or upgrades.



  • Dedicated flowmeter with clamp-on transducers
  • Wetted transducers optional
  • The signal is processed by 400k gate array to reach an ultra-fine time resolution
  • SD Card for data logging
  • RS485, 4-20mA

The SL1188 also features a large alpha-numeric display, parallel operation of positive, negative, and net flow totalizers (with user-selectable scale factors), and configurable pulse, analog, and frequency outputs. SD data logging capability is included and energy monitoring is fully supported.

It offers low power consumption and high reliability. The instrument can be configured via a keypad without any additional programming devices. It is packaged in a die-cast NEMA 4X (IP65) housing and is available in your choice of non-invasive clamp-on or insertion transducer configurations.

SL1188 Flowmeter Specifications

 Performance Specifications      Flow Range  +0.01m/s ~ +12m/s
 Accuracy  +0.5% of the measured value
 Pipe Size  25mm to 5000mm
 Linearity  +0.5%
 Functional Specifications  Outputs
 Analogue output: 4~20mA, max load 750Ω
 Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)
 Relay output: SPST, max. 1Hz (1A@125VAC or 2A@30VDC)
 Communication interface  RS232 & RS485
 Power Supply  90 to 245VAC, 48 to 63Hz. or  10 to 36VDC
 Keypad  22 keys with tactile action
 Display  40-character, 2-line (20x2) lattice alphanumeric, backlit LCD
 SD Card
 Standard SD Card
 Max record: 512 days
 Record time: interval
 Temperature
 Transmitter: -40°c ~60°c
 Transducer: -40°c ~80°c (standard)
 Humidity  Up to 99% RH, non-condensing
 Physical Specifications  Transmitter  NEMA 4x (IP65), Die-cast aluminium
 Transducer
 Encapsulated design
 Double-shielded transducer cable
 Standard/maximum cable length: 9m / 305m

SL1188 Industrial Transit Time Flowmeter dimensions

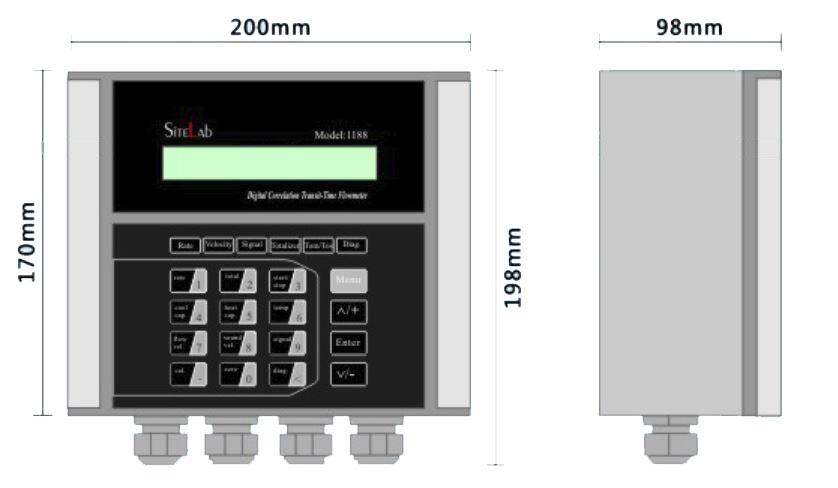

 SiteLab SL1188 flowmeter Transmitter dimensions

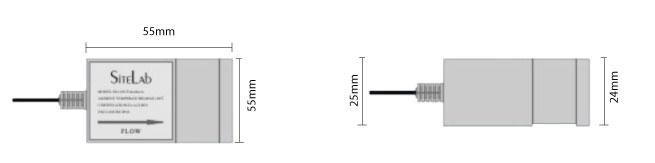

SiteLab SL1188 flowmeter Transducer dimensions

  • Flow Type: Liquid Flow Meters
