Three piece modular construction DBB, SBB or SB valve (Flanged outlet)

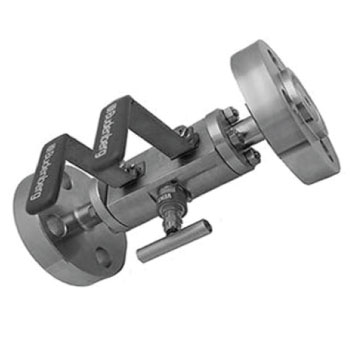

Budenberg MVF Flange inlet with outletModular Construction Valves

The model MVF is a three-piece modular valve that can be readily configured into a full range of Single or Double Block and Bleed Valves that provide primary isolation when directly mounted onto process pipework or vessels. The MVF has industry-standard flange or hub flanged inlet and outlet connections and a screwed or flanged vent connection to suit any application requirement.

Its modular design enables units to have flanged ends of different types, sizes, ratings and materials to be cost-effectively be manufactured. The design of the end connections incorporates the detail that directly secures the Ball Assembly in position thereby ensuring a single piece of material up to and including the first Primary Isolation Valve in line with the necessary standards.

The flexibility of the MVF Valve therefore provides a cost-effective yet limitless choice of configurations and materials that make it the perfect choice for your primary isolation requirements. All units can be supplied with a full range of testing, certification and documentation to meet any project requirement.



  contact us   for pricing and availability of the Budenberg model MVF - three-piece modular construction DBB, SBB or SB valve (Flanged outlet)





The Budenberg Three piece modular construction DBB, SBB or SB valves are suitable for the following applications/industries

Oil and Gas Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Oil & Gas
Pressure Gauge
Petrochemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Petrochemical
Pressure Gauge



Features of the Budenberg MVF valves

  • Hydrostatic and or Gas Pressure Testing to BS 6755 Pt 1
  • Fire safe to BS 6755 Pt 2, ISO 10497, API 607
  • Material thickness as defined in ANSI / ASME B16.34
  • Flange Dimensions as defined in ANSI / ASME B16.5 Materials
  • Standard Material Certification to EN 10204 3.1b
  • Can be manufactured in a full range of standard and special materials to suit the application



MVF Specification Sheet Download

To view all the information on the Budenberg model MVF valves you can download the datasheet here
