202 Grout Gauge

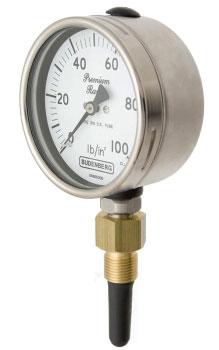

202 Rubber Capsule Grout Gauge Budenberg Australia @ Procon Instrument Technology

Rubber Capsule Grout Gauge

The Budenberg model 202 Pressure Guage has impressive technical specifications and a wide range of standard features that make the 202 Rubber Capsule Gauge the obvious choice for a wide range of process and engineering applications.

The Model 202 Rubber Capsule Gauge encompases all the above and by fitting the Gauge with a suitable Viton Sac, the pressure gauge can be used to measure pressures of media that would normally block the inlet of a standard pressure gauge.

Typical applications are effluent disposal, solidifying media such as fatty foodstuffs, and grout. Paper stock is renowned for blocking instrumentation and this is a simple solution.

Accurate pressure readings of such applications with sudden pressure surges can be accommodated with a viscous damped movement and a snubber.



    contact us   for pricing and availability of the Budenberg 202 Pressure Gauge.



Industries
Specifications
Dial Specifications
Download


The Budenberg 202 Pressure Gauge is suitable for the following applications / industries



Oil and Gas Budenberg Australia @ Procon Instrument Technology

Oil & Gas
Pressure Gauge



Budenberg 202 Specifications

Size
100mm (4") 150mm (6")
Mounting
Direct
Case & Bezel Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow out back manufactured in 1.6mm thick, 316L stainless steel.
Scale Ranges
0 to 1 bar up to the maximum for the measuring element Equivalent units of pressure / vacuum available
Single and dual scales are available
Pressure Element ≤80 Bar – 316 Stainless Steel Bourdon Tube
Pressure Connection
3/8”, 1/2” BSP
Other connections are available upon request.
Overload

Units withstand overload pressure up tot 130% of FSD

Overload & vacuum stops are fitted on the movement

Accuracy Class
CL:1 1.0% of FSD as defined in EN837-1
Option: 0.5% of FSD as defined in EN837-1
Temperature
Operating: -20 to +50 ºC
Options: for lower or higher operating temperatures
Temperature Effect
Variation in indication caused by temperature shall not exceed
+0.04 x (t2 - t1)% of the span where:
t1 is the reference ambient temperature in degrees celsius
t2 is the ambient temperature in degrees celsius
Environmental IP67 as defined in EN 60 529
Certification & Traceability
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity traceable to National Standards is supplied
Available Certification: BS EN 10204 3.1B Material Certification
Point to Point Test Certificate
All instruments are individually calibrated and have a unique Serial Number printed on the dial.
Safety All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.



Classic 202 Series Dial Specifications

Size 100mm (4") 150mm (6")
Dial
White Anodised Aluminium marked in black finish
Single or dual scale
Pointer
Stainless steel coloured black
Options: Micrometer adjustable pointer
Movement Stainless steel construction
Options: Viscous damped movement to overcome the effects of minor pressure pulsations
Window
3mm Laminated Safety Glass (standard)
Option: Acrylic Plastic Window



202 Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 202 Pressure Gauge you can download the data sheet here
