BLS 9200 Bilge Level Switch

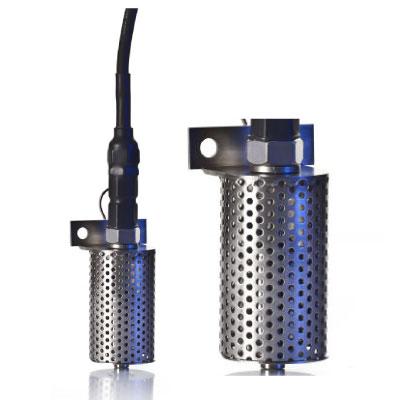

BLS 9200 Bilge Level Switch by PSM Marine from Procon Instrument TechnologyThe BLS 9200 Bilge Level Switch has been designed by PSM Marine to be compact, but a rugged bilge water level alarm switch specifically for marine bilge level measurement on vessels of all sizes.

It is a fully Submersible Marine Approved Bilge Alarm/Water Level Switch

The integral manual checking device in the BLS 9200 fully submersible marine approved bilge alarm/water level switch conforms to class rules without complicating the installation. A two bolt fixing means the siting and mounting are also simple. The self-draining, fully shrouded design prevents interference of operation from obstructions or floating debris.

Due to the harsh environments that this bilge water level switch is likely to encounter, extensive successful testing has been undertaken, exceeding the required environmental testing required for Marine Type Approval laid out in IACS Unified requirement E10 and the relevant sections of IEC945.




BLS9200 Bilge Level Switch features

  • Rugged and compact all-stainless steel design with EPR cable resistant to seawater, fuel oil and hydraulic fluid ensures reliable operation over years of service
  • Compact in size with a mechanical mounting using a two-bolt mounting bracket means that installation and commissioning is simple and fast
  • Self-draining cage design prevents fouling of the float from obstructions or floating debris in the bilge, as well as protection from false-switching
  • Integral switch test lever allows full testing of the float movement and switch functionality ensures routine safety tests can be carried out for peace-of-mind
  • Normally-open or normally-closed operation and user-selectable cable lengths ensures the BLS 9200 can be quickly delivered against each customers exact requirement
  • Fully submersible IP68 construction with relevant marine type approvals
  • Simple 2 Bolt Fixing
  • Choice of Marine grade cables. Two metres of cable as standard, optional lengths as required
  • Optional termination enclosure with built in switch protection
  • Military approved version NSN:6680-99-361-6302

BLS 9200 Specifications

Stainless steel stem, float, test mechanism, body plates and slosh shield
Cable Marine grade EPR insulated with LSZH elastomeric type SW4 sheath, 3-core with plyolefin boot
Cable Length 2m as standard. Other lenghts optional
Process Temperature -10C to + 90C
Switch Type S.P.C.O reed switch
Swith MTBF 3 per million hours operation
Electrical rating - maximum 100 VA resistive load (maximum 500 V DC or 250 V AC at 3A)
Electrical rating - minimum 3W (to prevent long-term switch contact material activation)
Float SG 0.62 (others optional)
Marine type approvals LR, BV and DNV
Important: Specifications are subject to change without notice

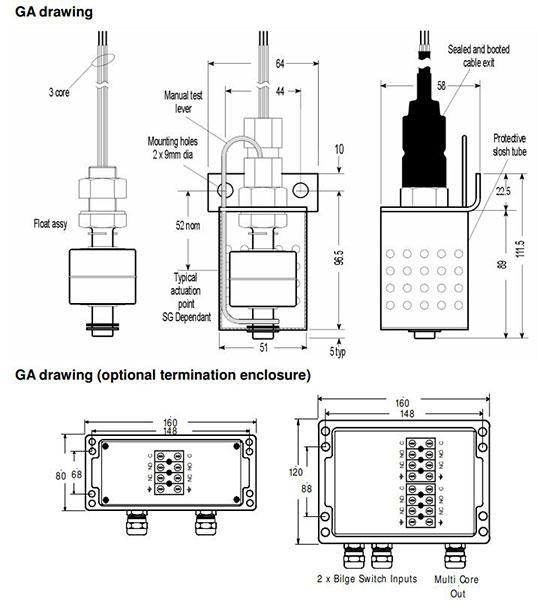

BLS 9200 Drawings for product dimensions

PSM Marine BLS 9200 Bilge Level Switch Drawing from Procon Instrument Technology
