Standard Test Gauge

Standard Test Gauge Budenberg Budenberg Australia @ Procon Instrument Technology

Standard Test Pressure Gauge - 0.25% Accuracy

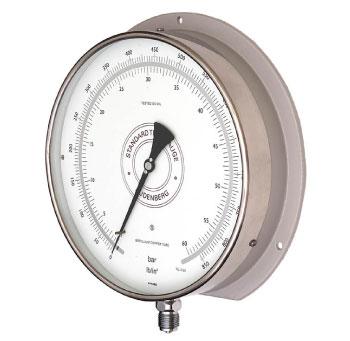

The Budenberg Standard Test gauge has 0.25% accuracy and is undoubtedly recognised as a world leader for its accuracy and Budenberg quality.

This gauge incorporates a base test gauge accuracy with a maximum of 500 graduations where possible, along with a knife-edged pointer and an anti-parallax mirror to help reduce the chance of human error.

The Standard Test Pressure Gauge is an obvious choice when accuracy is paramount.

Budenberg's standard test gauge meets all the requirements of EN837 and all units are supplied with a detailed calibration certificate with is traceable to National Standards. The gauge is also dust and splash-proof to IP 54 standards.

Recalibration is simplified with the inclusion of a micrometer adjustable pointer as a standard feature.

For oxygen applications, these gauges must be manufactured to ensure they are entirely free from oil and grease.

  contact us   for pricing and availability of the Budenberg Standard Test Pressure Gauge.



Standard Test Gauge Applications

The Budenberg Standard Test Gauges can be used for a number of applications including:

  1. Calibration of pressure gauges, transducers, and transmitters.
  2. Calibration of pneumatic controllers, valves, etc.
  3. Measurement of pressure on test beds in Aero, hydraulic systems, and diesel engine injection systems.
  4. The setting of pressure relief valves.
  5. Measurement of pore water pressure in soil mechanics laboratories.
  6. Efficiency testing of steam turbines in power stations, gas turbines, and compressors.



The Standard Test Gauge from Budenberg is suitable for the following applications/industries



Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Power Generation Pressure Gauges

Power Generation
Pressure Gauge

Oil and Gas Pressure Gauge

Oil & Gas
Pressure Gauge

Petrochemical Pressure Gauge

Petrochemical
Pressure Gauge



Budenberg Standard Test Gauge Specifications

 Size  150mm (6"), 200mm (8") & 250mm (10")
 Mounting
 Direct, Surface Mounting is standard with a bottom connection.
 Flush Panel Mounting with clamp/three-hole fixing is also an option.
 Case  LM6M Aluminium casting to BS1490 utilising a full Safety Pattern solid baffle wall with blow-out back, finish to BS381C
 Bezel
 Diret/Surface mount - Stainless Steel 316L polished.
 Flush mount - Die-cast aluminum finished in black.
 Scale Ranges
 0 to 600 mbar up to 0 to 1,600 bar pressure
 0 to 10 psi and up to 25,000 psi
 Equivalent units of pressure /vacuum available, dual scale units, or custom scales can be provided on request
 Pressure Element
 Up to 70 Bar Beryllium Copper bourdon tube & Brass Chrome plated connection
 From 71 Bar up to 600 Bar Beryllium Copper coil tube & Brass Chrome plated connection
 From 601 Bar up to 2500 Bar Ni-Span C Coil & Stainless Steel connection
 Option for Stainless Steel on request
 Overload Protection
 Units will withstand the following overload pressure conditions for a short period:
 Max Scale Value - Over Pressure to be Applied
 ≤ 80 Bar - 130% of Maximum Scale Value
 ≥ 81 Bar - 115% of Maximum Scale Value
 Pressure Connection
 1/2" BSP or NPT on direct/surface mounting and
 3/8" BSP or 1/4" NPT as standard on Flush Mounting units
 Other connections including HF2 high pressure are available
 Accuracy Class
 0.25% of FSD as defined in EN837-1
 Temperature
 Operating: -20 to +90°c
 Storage: -40 to +100°c
 For options for lower or higher operating temperatures, please contact our office
 Environmental  Dust Proof & Splash Proof to IP54
 Certification & Tracebility
 Individually calibrated with a unique serial number printed on the dial.
 Certificate of Conformity.
 Safety  All units are manufactured to comply with EN837-1, S1 Specification, and other regulatory standards including PED.





Standard Test Gauge Dial Specifications

 Size  150mm (6"), 200mm (8") & 250mm (10")
 Dial
 White Anodised Aluminium with Mirror Scale with Anti parallax mirror scale for an accurate reading.
 Option: Dual Scale or special dial markings are available
 Pointer  Micrometer Adjustable, Knife-edge, Aluminium coloured Black
 Movement
 Brass Construction
 Options: Viscous Damped movement to overcome the effects of minor pressure pulsations and vibrations
 Window
 1 piece polycarbonate

Standard Test Gauge Specification Sheet Download

To view all the information on the Budenberg Standard Test Pressure Gauge you can download the datasheet here

DOWNLOAD PDF
