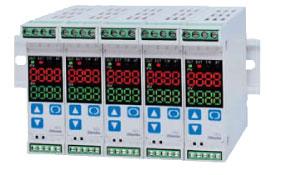

Shinko Model DCL-33A Din Rail Mount Controller

Shinko - DCL 33A DIN Rail Mount Controller
Din Rail Mount Controller - Temperature Controller, Transmitter or Alarm Unit

  • Temperature Controller, Transmitter, or Alarm Unit
  • 4 Digit Display 100-240VAC
  • PID Control Action
  • Multi-Input K, J, R, S, B, E, T, N, RTD 4-20mA 0-1/5/10 Volt
  • Outputs: Solid State, Relay, 4-20mA, V
  • Alarm output Standard

Standard Features

Space Saving Size
Easy to mount even in a small machine because the width is just 22.5mm, height 7.5mm, and depth 100 mm.

Dual Use

This instrument is easily switched to a controller or transmitter by key operation. When used as a transmitter, the signal or thermocouple input, RTD input or DC input is converted and output to 4 to 20mA DC. The scale is changed easily, too.
(This function is limited only A/• type)

Expandable

Shinko DCL-33A, Series, DIN Rail Mounting, Type, Indicating Controller, Shinko, DCL-33A, Series, DIN, Rail, Mounting, Type, Indicating ControllerIt is possible to measure and control ranging from 1 point to a maximum of 31 points using serial communication (RS-485). It is very easy to connect between plural DCl-33A’s, between communication converter and DCL-33A using communication cable CPP and CPM (sold separately).

Easy Mounting And Detaching

Hook this instrument on the DIN rail and mount it. Maintenance is very easy. As it is fixed to the DIN rail, it is vibration-proof. When detaching it pull down the hook at the lower part of the main body using flat bladed screwdriver then pull up this instrument.

Large LED Display

Shinko DCL-33A, Series, DIN Rail Mounting, Type, Indicating Controller, Shinko, DCL-33A, Series, DIN, Rail, Mounting, Type, Indicating ControllerPV Red 4 digits 7.5 x 4.1mm (H x W)
SV Green 4 digits 7.5 x 4.1 mm (H x W)

Safety Approvals

UL, cUL, and CE Safety Approvals.

True Multi-Input

Units feature full multi-input capability:
1 RTD type, 10 thermocouple types, mA, and V inputs

PID Autotune

Units feature full-function third-generation PID Autotune.

Warranty

All units are manufactured to strict ISO standards and offer a full 3-year manufacturer's warranty.

Low Cost

The most advanced price/performance package is available.

System Configuration (example)

When connecting multiple DCL-33A’s to monitor: It is very easy to control and monitor a maximum of 31 points by connecting PC communication with a converter. (If the communication specification of the PC is RS-485, a communication converter is not required.)

When DCL-33A is used as a transmitter

Various process signals are converted into the insulated 4 to 20mADC in the DCL-33A inner assembly, then 4 to 20mA is outputted. It is possible to monitor multipoint process values by connecting a multipoint indicating recorder.

When DCL-33A and a programmable controller are used together

It is very easy to control and monitor a maximum of 31 points by connecting PC communication If DCL-33A (with option C5) and Shinko programmable controller (with Option: SVTC) as a program setter are combined, it can be used as a multipoint programmable controller (a maximum of 31 units). (Setting value digital transmission is possible.)
