WTP Inline PVC Turbine Meter - Seametrics

Seametrics WTP PVC Turbine Flow Meter @ Procon Instrument TechnologyThe WTP PVC Inline Turbine meters from Seametrics are suitable for water treatment, municipal, cooling water monitoring, and industrial flow control.

This unique system of 2″ to 6″ turbine meters uses just one moving part, a precision helical rotor. The rotation of the rotor is electronically detected and processed. The high-quality jewel bearings and shafts minimize friction while providing long wear life in non-lubricating fluids. The entire rotor assembly can be easily removed for field service without removing the meter from the pipe.

The WTP bodies are fabricated from Schedule 80 PVC fittings. The WTP turbine insert is machined from a solid piece of PVC. Turbine rotors on all models are Kynar (PVDF). The WT model meters can be ordered with various output options. The basic model (100) comes with pulse output only. An electronic display (Seametrics FT420) is mounted on the 101 models to display flow rate and total (resettable or non-resettable), and provide a programmable pulse or 4-20 mA output. Other electronics options include a blind 4-20 mA transmitter (AO55) on the 102 model and a battery-powered (FT415) rate/totalizer plus pulse output for applications that lack power (104 models).

All of these controls/displays can be mounted on the meter or remotely mounted on a wall or panel up to 2,000 feet away. The Seametric WT-Series turbine meters are compatible for use with most other remote-mount Seametrics displays and controls as well.

   This email address is being protected from spambots. You need JavaScript enabled to view it.   for information on the TurboPro Pro-T Turbine Meters by Vortek

  • PVC-body turbine flow meter
  • In-line, individually-calibrated turbine meter maximizes accuracy
  • A turbine rotor is an only moving part, optimizing low-flow performance
  • Solid-state pickup
  • The electronic register can be meter-mounted or remote
  • Available with blind pulse or 4-20 mA output
  • Materials are chemical-resistant
  • Can be ordered with stub ends (standard) or flanges (optional)

Featuring

  • One moving part
  • Low-friction jewel bearings
  • Field repairableCchoice of materials
  • Variety of displays and controls

Specifications for the WTP Turbine Flowmeter

 Pipe Sizes  3", 4", 6"
 Materials  Meter Body  PVC schedule 80 fittings
 Turbine insert  PVC
 Rotar  Kynar® (PVDF)
 Shaft  Zirconia ceramic
 Bearings  Sapphire journal, ruby endstone
 Cable  #22 AWG, 2000' max.
  Flanges  Optional (refer to dimensions)
 Maximum Pressure  10 bar @ 24°c
 Maximum Temperature  50°c
 Accuracy  + 1% of full scale
 Flow Range (GPM)   3"           4"             6"
 Minimum   3            6              12
 Maximum  400       600          1200
Kynar is a registered trademark of Arkema, Inc.
Specifications are subject to change.

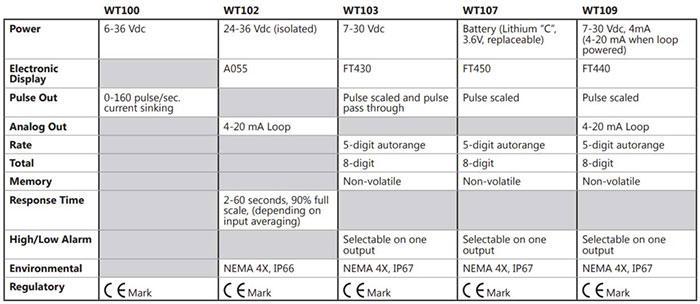

WTP Electrical Specifications

Seametrics WTP Electronics Options & Specifications

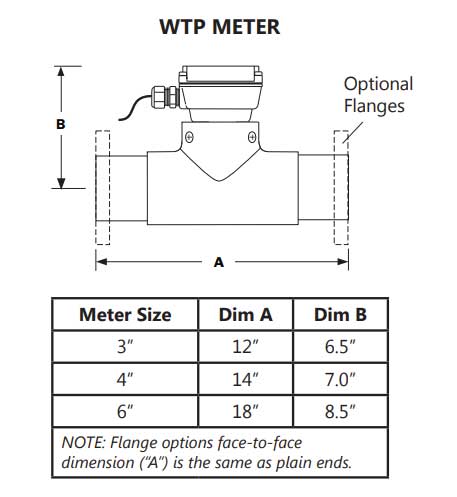

WTP Dimensions

Seametrics WTP Turbine Flow Meter Dimensions

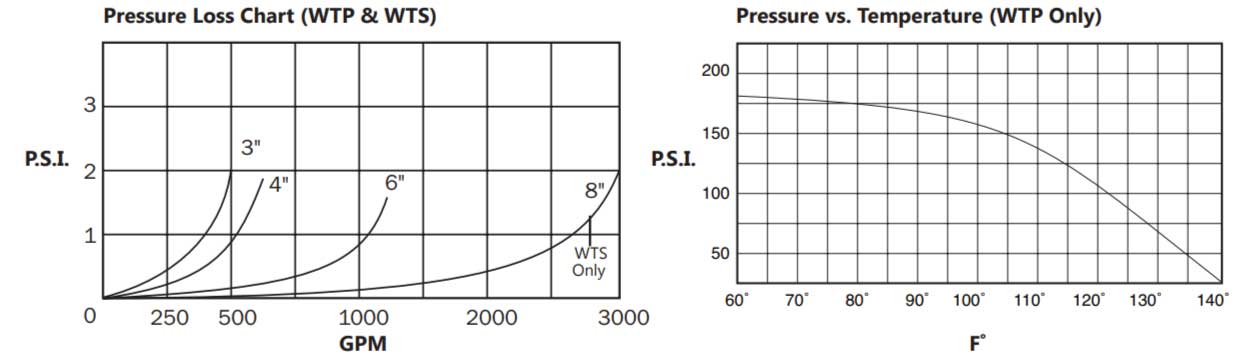

Pressure & Temperature Chart for the WTP Flow Meter

Seametric WTP Turbine Flow Meter Pressure Temperature Chart

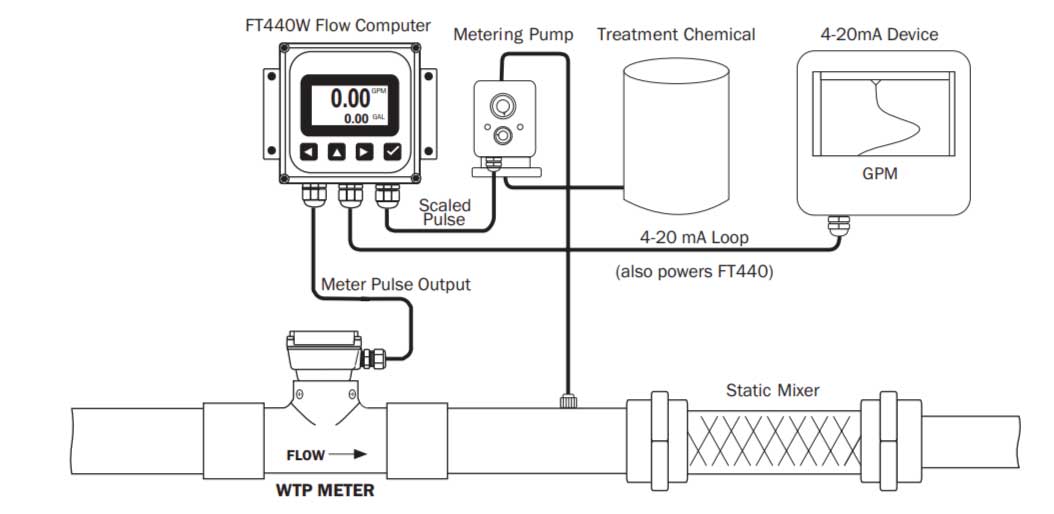

Typical Applications of the WTP Turbine Flow Meter

Seametrics WTP Turbine Flow Meter Application

Download the WTP datasheet

DOWNLOAD PDF  for the WTP Inline PVC Turbine Meter by Seametrics
