SL1278P Handheld Transit Time Flowmeter by SiteLab

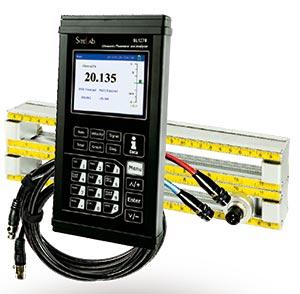

SL1278 Ultrasonic Flowmeter from SiteLab at Procon Instrument Technology
The New SL1728P from SiteLab is a Digital Handheld Transit Time flow meter that replaces the SL1168P Ultrasonic flow meter. It provides a measuring system with excellent accuracy, versatility, ease of use, and dependability.

The SL1278P Ultrasonic flowmeter enables the user to do flow measurement checks at many points throughout the flow process without the need for a permanent installation.

This universal transit-time meter features a dual-function push-button interface, ergonomic handheld design, and a 3.5in TFT backlit digital display that significantly simplifies setup and data collection.

    contact us   for more information about the SL1278P

Compared with other traditional flow meters or ultrasonic flowmeters the SL1728P has distinctive features such as:

  • high precision
  • high reliability
  • high capability
  • low cost
  • TVT technology designed
  • fewer hardware components
  • low voltage broadband pulse transmission
  • low power consumption
  • clear and user-friendly menu selections
  • daily, monthly, and yearly totalised flow.
  • parallel operation of positive, negative and netflow
  • totalises with scale factor (span)
  • 7 digit display
  • the output of totalise pulse and frequency output are transmitted via relay and open collector

SL1728P Transit Time Flow Meter Specifications

 Performance Specifications      Flow Range  +0.01m/s ~ +12m/s
 Accuracy  +1.0% of the measured value
 Repeatability  0.3%
 Linearity  +1%
 Pipe Size  Clamp-on: 25mm ~ 1200mm
 Functional Specifications  Outputs
 Analogue output: 4~20mA, max load 750Ω
 SD Card
 Storage: 8GB
 Max: 512 files
 Interval: 1 ~ 60 seconds
 Power Supply  Rechargeable Lithium Battery (continuous operation of main battery for 10 hours)
 Keypad  Tactile keys
 Display  3.5" TFT screen (320 x 240), backlit LCD
 Temperature
 Transmitter: -10°c ~50°c
 Transducer: -40°c ~80°c
 Humidity  Up to 99% RH, non-condensing
 Physical Specifications  Transmitter  NEMA13, IP54
 Transducer  Encapsulated design, IP68
 Transducer Cable  Standard cable length: 5m
 Weight
 Transmitter: approximately 1.0kg

SL1278P Flow Meter Document Downloads

Download the SL1278P Data Sheet for more information on:

  • Wiring Diagram
  • Transmitter Dimensions
  • Transducer Installation Methods
  • Installation Site Selection
  • Ordering Information
  • Package Contents

DOWNLOAD PDF

  • Flow Type: Liquid Flow Meters
