D118i Ultrasonic Transit Time Flowmeter by SiteLab

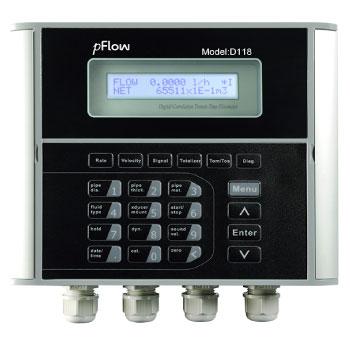

D118i Ultrasonic Flowmeter SiteLabThe Model D118i Ultrasonic Flowmeter is a state-of-the-art universal transit-time flowmeter designed using ARM COMA technology and low-voltage broadband pulse transmission.

While principally it was designed for clean liquid applications, the versatility of the D118i means it is tolerant of liquids with the small amounts of air bubbles or suspended solids found in most industrial environments.

Compared with other traditional flow meters or ultrasonic flowmeters, it has distinctive features such as high precision, high reliability, high capability, and low cost.

The D118i flowmeter also features other advantages like:

  • 4.7” graphic LCDCNC machined enclosure with hardened aluminum
  • Unique technology for dynamic flow
  • PICOFLY
  • TF Card, 512 files can be stored (
  • the time interval can be within 1 second)

Applications: Water / Sewage, Petroleum, Plant Irrigation, Chemicals, Cooling Water

SL1188 Flowmeter Specifications

 Performance Specifications      Flow Range  +0.01m/s ~ +12m/s
 Accuracy  +0.5% of the measured value
 Repeatability  0.1% of the measured value
 Pipe Size  25mm to 5000mm
 Functional Specifications  Outputs
 Analogue output: 4~20mA, max load 750Ω
 Pulse output: 0~9999Hz, OCT output, (adjustable)
 Relay output: the highest 1Hz (1A@125VAC or 2A@30VDC)
 Communication interface  RS232 & RS485 communication interface, support Modbus Protocol
 TF Card
 Max record: 4GB, working 1200 days (sample frequency 5 seconds)
 Storage time interval: 1 ~ 13000s
 Power Supply  90 to 245VAC, 48 to 63Hz. or  10 to 36VDC
 Keypad  24 light tactile keys
 Display  4.7" TFT colour screen
 Temperature
 Transmitter: -10°c ~60°c
 Transducer: -40°c ~80°c (standard)
 Humidity  Up to 99% RH, non-condensing
 Physical Specifications  Transmitter  Die-cast aluminium, IP65, CNC machined
 Transducer
 Encapsulated design, protection grade IP68
 The standard length of cable: 9m
 Material: 304 stainless steel
 Weight  Transmitter: 1 kg





  • Flow Type: Liquid Flow Meters
