566GP - Safety Pattern Budenberg Pressure Gauge

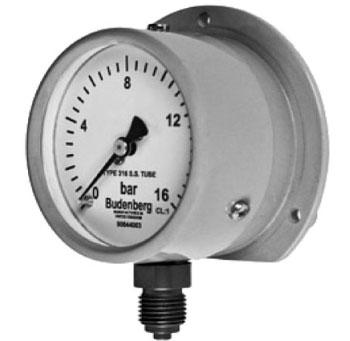

566GP Bourdon Tube Pressure Gauge Budenberg Australia @ Procon Instrument Technology

Bourdon Tube Pressure Gauge - Defence Standard

The Budenberg 566GP Pressure Gauge has been designed for use in Naval and Marine applications in accordance with Def Stan 66-2.

This gauge has been designed to withstand high levels of shock and is manufactured in accordance with EN837 -1.

Variants include an oil-free pressure gauge clean for Oxygen duty with the dial marked accordingly.

The 4" and 6" flush mounting versions are available with 3 Hole front fixing flange or the Instrument black bezel with a rear clamp fixing.



   contact us   for pricing and availability of the Budenberg 566GP Pressure Gauge.





The Budenberg 566GP Pressure Gauge is suitable for the following applications/industries



Budenberg Marine & Navel Pressure Gauge

Marine &
Navel

Oil & Gas Pressure Gauges Budenberg Australia

Oil & Gas
Pressure Gauge



Budenberg 566GP Specifications

 Size  63mm (2.25"), 100mm (4") & 150mm (6")
 Mounting
 Direct, Surface and Flush (3 Hole or clamp)
 63mm available in 3 Hole fixing only in Flush Mounting.
 Case & Bezel  Die Cast Aluminium Case, with a solid baffle partition wall and full blow-out back. Powder-coated brass bezel.
 Scale Ranges
 0 to 400 mbar to 0 to 1400 bar Pressure.
 Equivalent units of pressure/vacuum are available. Single and dual scales are also available.
 Pressure Element
 ≤80 Bar – 316 Stainless Steel Bourdon Tube
 ≥81 Bar - 316 Stainless Steel Coil
 Overload Protection
 Units withstand overload pressure up to 130% of FSD. Overload & vacuum stops are fitted on the movement.
 Option: Mechanical overload clamps fitted internally to enable units to withstand up to 3X the max scale reading.
 Pressure Connection in 316 Stainless Steel
 1/4", 3/8" & 1/2" BSP
 1/2"NPT
 Other connections are available.
 Accuracy
 CL:1 1.0% of FSD as defined in EN837-1
 Option: 0.5% of FSD as defined in EN837-1
 Temperature
 Operating: -20 to +90°c
 Storage: -40 to +100°c
 For options for lower or higher operating temperatures, please contact our office
 Temperature Effect  Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius
 Environmental  IP67 as defined in EN 60 529
 Certification
 Individually calibrated with a unique serial number printed on the dial.
 Certificate of Conformity.
 Available Certification: BS EN 10204 3.1B Material Certification
 All units are manufactured to comply with EN 837-1 specification and other regulatory standards including PED.
 Traceability  All instruments are individually calibrated and have a unique Serial Number printed on the dial.
 Safety  All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.

Classic 736 Series Dial Specifications

 Size  63mm (2.25"), 100mm (4") & 150mm (6")
 Dial
 White Anodised Aluminium marked in black finish
 Single or Dual Scale
 Pointer
 Aluminium coloured Black
 Options: Micrometer Adjustable Pointer
 Movement
 Stainless Steel Construction
 Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
 Window
 3mm laminated Safety Glass


566GP Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 566GP Pressure Gauge you can download the datasheet here
