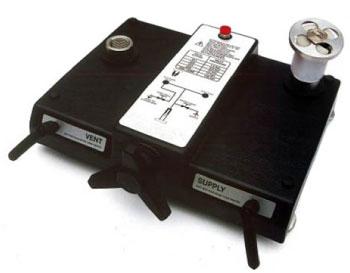

BGP1 Pneumatic Dead-Weight Tester

BGP1 Pneumatic Dead Weight Tester Budenberg Australia @ Procon Instrument Technology

Budenberg Industrial Dead-Weight Tester 15 to 1000 mbar / 1.5 to 100 kPa

The Budenberg BGP base can be used with any BGP series piston, allowing testing from 15 mbar to 120 bar. The base requires a supply of gas slightly above test pressure, and has precision inlet / outlet valves and a screwpress to enable easy regulation and adjustment of pressure.

The BGP1 has a 1/2in2 high chrome steel piston/cylinder unit. The design has been proven over many years to provide excellent sensitivity and stability. Low start pressure is achieved through use of a hollow piston and aluminium head.

NOTE: The model BGP1 can be used on vacuum with a model 24 adaptor.

All certificates issued for Budenberg dead weight Testers are fully traceable to national standards via equipment with UKAS calibration certificates.

  • Ranges from 15 to 1000 bar / 1.5 to 100 kPa
  • Supplied with integral pressure generation

Features
Industries
Download

BGP1 by Budenberg Features

  • Range: From 15 to 1000 mbar / 1.5 to 100 kPa
  • Standard Accuracy: To 0.015%
  • Class ‘A’ Accuracy: To 0.006%
  • Accessories: Two gauge stand, carry cases, vacuum adaptor etc
  • Piston/Cylinder Unit: 1/2in2 high chrome steel
  • Weights: Austenitic stainless steel
  • Tool Roll: Containing all necessary items for immediate start-up (External gas supply required)



The Budenberg is suitable for the following applications / industries

Oil & Gas Pressure Gauges Budenberg Australia

Oil & Gas

Petrochemical Pressure Gauges Budenberg Australia

Petrochemical





BGP1 Pneumatic Dead-Weight Tester Specification Sheet Download

For more information on the BGP1 Dead Weight Tester

DOWNLOAD PDF


For more information on optional accessories

DOWNLOAD PDF
