Flomec Medium Chemical Flow MeterFlomec Chemical Flow Meter for precise volumetric flow measurement of clean liquids

The Flomec Medium Capacity Chemical Flowmeters provide precise volumetric flow measurements of a broad range of clean water-based products and aggressive chemicals and are also suitable for most fuels, fuel oils, and lubricating liquids.

Applications include batching, dosing, or packaging of various corrosive chemicals or as a more economical alternative to a complete 316 stainless steel meter for liquids such as Diesel Exhaust Fluid (AdBlue).

Featuring:

  • High accuracy & repeatability, direct reading flowmeter
  • No requirement for flow conditioning ( straight pipe runs )
  • Measures high & low viscosity liquids
  • Quadrature pulse output option & bi-directional flow
  • Integral 4-20mA output option
  • Optional NMI Pattern Approval ( Australia only )



Typical Applications for the Flomec Chemical Flow Meter include dispensing or transfer of:

  • Water (non-potable, demineralised, RO)
  • Glycols / Anti-Freeze
  • Diesel Exhaust Fluid (DEF / Adblue)
  • Fertilizers
  • Herbicides
  • Insecticides
  • Also suitable for many non-flammable fuels and oils

Flomec Flow Products Orbital Piston Models & Specifications

OM080
 Nominal Pipe Size
25mm (1")
 *Flow range - GPM
  Flow range - LPM
2.6 - 40
10 - 150
 **Accuracy@3cp + 0.5% of reading (accuracy is + 0.2% of reading with optional RT12 with non-linearit correction)
 Repeatability typically + 0.03% of reading
 Temperature range -20°c ~ +80°c, refer to the factory for lower temperature
 Maximum Pressure PSI (bar) Threaded Meters
 PPS Meters 5 (70)

Electrical - for pulse meters (see also option outputs)

 Outut pulse resolution pulses/litre
 Reed switch 27 (102)
 Hall effect 107 (405)
 QP - Quadrature Hall Option 54 (204)
 Reed switch output ** 30Vdc x 200mA max. [maximum thermal shock 10°c/minute]
 Hall effect output (NPN) 3 wire open collector, 5~24Vdc, 20mA max.
 Optional outputs 4-20mA, scaled pulse, quadrature pulse, flow alarms or two-stage batch control

Physical

 Protection class IP66/67 (NEMA4X)
 Overall dimensions Download Specification Sheet
 Recommended filtration 100 mesh (150 microns)

* Maximum flow is to be reduced as viscosity increases, see flow de-rating guide. Max. recommended pressure drop is 100Kpa. (15psi)

** Accuracy + 1% of reading with M - Series mechanical registers and accuracy + 0/5% of reading with V series mechanical register

Meter Selection for the Flomec Chemical Flow Meter

Selecting the right meter for your application. Meters are selected based on flow range, pressure, temperature, material compatibility, and functionality.

PPS meters are used for non-aromatic/non-halogenated chemicals, water-based liquids, Diesel Exhaust Fluid, and petroleum products including oils and grease, fuels, and fuel oils.

PPS meters with standard ceramic rotor pins are suitable for applications where stainless steel is not suited or permitted.

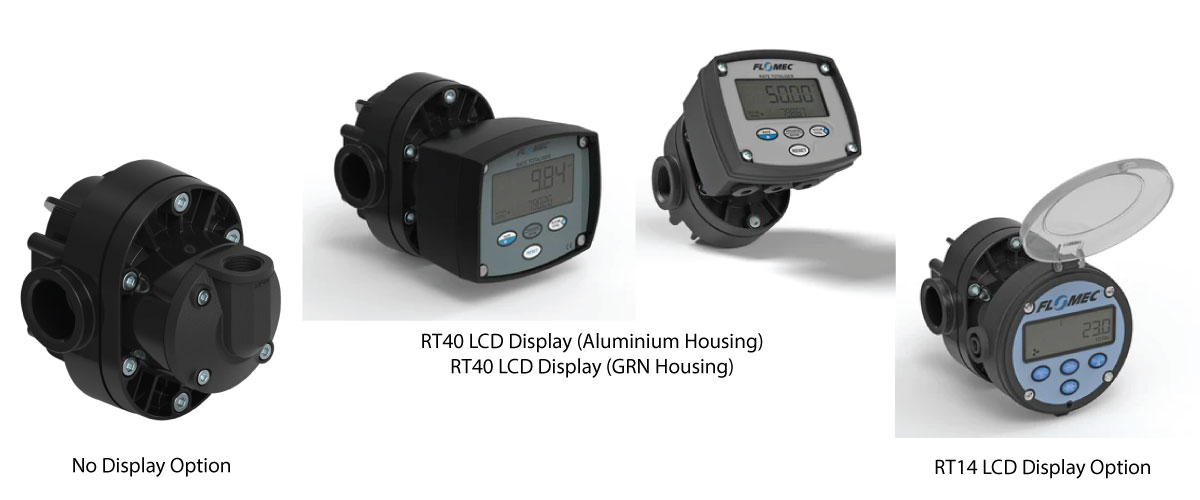

FLOMEC®  meter options include integral LCD totalisers, flow rate totalisers & batch controllers. These instruments provide monitoring & control outputs including 4~20mA, scaled pulse, alarms & batch control, and are also available with robust mechanical registers:

  • BT LCD 5-digit reset, 8-digit cumulative totaliser.
  • RT12 LCD 6-digit reset, cumulative totaliser & flow rate. Analogue and Pulse Outputs
  • RT40 LCD 6-digit reset, cumulative totaliser & flow rate. Backlit Display
  • EB LCD 6 digit 2 stage batcher & cumulative totaliser.
  • M / V*  = Mechanical registers ( see model numbering )

(Instruments are also available for remote mounting and with I.S. approvals)



Download

For more information on specifications and product configuration

DOWNLOAD PDF of the OM Series Chemical Flowmeter by Flomec



  • Flow Type: Liquid Flow Meters
