91/SE Schaffer Diaphragm Gauge

91 SE Schaffer Diaphragm Seal  Budenberg Australia @ Procon Instrument Technology

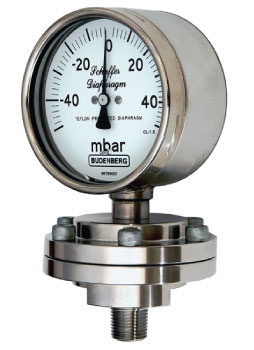

Schaffer Diaphragm Gauge, DMC Plastic Case with Flanged Connection

The Budenberg model 91/SE Schaffer Diaphragm gauge has been designed for use on slurries, viscous or corrosive fluids that would normally attack or block standard bourdon tube gauges. 316 Stainless Steel full safety pattern case.

Implementing specialist materials for both the connection and diaphragm enables the Shaffer Diaphragm gauge to be configured for use on any gaseous or liquid media including suspended solids or powders. The direct drive from the diaphragm to the movement ensures a more positive indication of pressure than other models of tube gauges.

The P91/CFN offers a full range of flanged connection sizes and materials, Schaffer Diaphragm gauges can operate at pressure ranges as low as 30 mBar with the option to permit units to withstand a maximum pressure of 70 bar.



  contact us   for pricing and availability of the Budenberg 91/SE Diaphragm Seal Gauge


The Budenberg 91/SE is suitable for the following applications/industries

Designed for continuous operation on gases or liquids where the product to be measured is of a hygienic and or foodstuff nature.

Versions are available to withstand pressure pulsations, vibrations, and operation at very high temperatures.

Oil and Gas Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Oil & Gas
Pressure Gauge
Pharmaceutical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Pharmaceutical
Pressure Gauge
Chemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Chemical
Pressure Gauge
Power Generation Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Power Generation
Pressure Gauge

Waste Water Pressure Gauge Budenberg Australia @ Procon Instrument Technology

Water & Waste Water
Pressure Gauge

Food & Beverage Pressure Gauge Budenberg Australia @ Procon Instrument Technology

Food & Beverage
Pressure Gauge

Petrochemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology

Petrochemical
Pressure Gauge

The Budenberg 91/SE specifications

 Size  100mm (4")
 Mounting
 Direct and Surface
 Option: Flush Mounting
 Case & Bezel  Stainless Steel fully Safety Pattern, with solid wall and blow-out back, with polished stainless steel bezel
 Scale Ranges
 0 to 30 mBar up to 25 Bar Pressure / Compound ranges
 Equivalent units of pressure/vacuum available
 Single and Dual scales are available
 Option: Custom scales for special applications, ie: tank contents
 Overload
 Units will withstand overload pressure up to 125% of FSD
 Pressure Connection
 3/8", 1/2", BSP,   1/2" NPT External as standard
 Other connections available
 Connection Material
 316L Stainless Steel as standard
 Options: Carbon Steel, Monel, Titanium, Hastelloy, Tantalum
 Lining Options: PTFE, Halar, PDA
 Diaphragm Material
 Stainless Steel as standard
 Options: Carbon Steel, Monel, Titanium, Hastelloy, Silver, or PTFE Protected
 Other Materials to suit the application are available
 Accuracy Class
 1.0% of FSD as defined in EN837-1
 1.5% of FSD if the diaphragm is protected
 Environmental Rating
 IP65 as defined in EN 60 529
 Temperature
 Operating:  -10 to +60°c
 Storage:  -40 up to +100°c
 For lower or higher operating temperatures, please contact our office
 Certification & Traceability
 All instruments are individually calibrated and have a unique Serial Number Printed on Dial.
 A certificate of Conformity traceable to National Standards is supplied
 BS EN 10204 3.1B Material Certification
 Point-by-Point Test Certificate
 Safety  All units are manufactured to comply with EN837-1, S3 Specification, and other regulatory standards including PED.

91/SE Dial Specifications

 Size  100mm (4")
 Dial
 White Anodised Aluminium marked in black finish
 Dual Scales, bands, and sectors are also available.
 Customisation with Company Name or Logo.
 Pointer
 Aluminum coloured black
 Option: Micrometer adjustable pointer for Ranges > 350 mBar
 Movement
 Brass Construction
 Window
 Laminated Safety Glass (standard)
 Option: Acrylic Plastic Window

91 / SE Specification Sheet Download

To view all the information on the Budenberg 91/SE you can download the datasheet here

DOWNLOAD PDF
