SL1168 Industrial Transit Time Flowmeter by SiteLab

SiteLab - SL1168 clamp on flow meterThe SL1168 Series Ultrasonic Flowmeter from SiteLab is a state-of-the-art universal transit-time flowmeter that has been designed using an FPGA chip and low-voltage broadband pulse transmission.

Compared with other traditional flowmeters or ultrasonic flowmeters, the SL1168 has distinctive features such as:

  • high precision & reliability
  • high capability
  • low cost

The flowmeter features other advantages of: TVT technology design. Fewer hardware components, low voltage broadband pulse transmission, low consumption power. Clear, user-friendly menu selections make the flowmeter simple and convenient to use. Daily, monthly, and yearly totalized flow Parallel operation of positive, negative, and net flow totalizes with scale factor (span) and 7-digit display, while the output of totalised pulse and frequency output are transmitted via relay and open collector.

SL1168 Industrial Transit Time Flowmeter Specifications

 Performance Specifications  Flow Range  +0.01m/s ~ +5m/s
 Accuracy  +1.0% of the measured value
 Pipe Size  Clamp-on
 Keypad  Sealed membrane keypad with four keys.
 Functional Specifications  Outputs
 OCT Pulse output: 0~5000Hz
  Analogue output: 4~20mA, max load 750Ω
 Communication interface  RS485 MODBUS
 Power Supply  10~36VDC/1A
 Keypad  16(4x4) key with tactile action
 Dispaly  20x2 lattice alphanumeric, backlit LCD
 Temperature
 Transmitter: -10°c ~50°c
 Transducer: 0°c ~80°c
 Humidity  Up to 99% RH, non-condensing
  Physical Specifications   Transmitter  PC/ABS, IP65
 Transducer  Encapsulated design, IP68
 Transducer Cable  Standard cable length: 9m
 Weight
 Transmitter: approximately 0.7kg
 Transducer: approximately 0.4kg

SL668 Industrial Transit Time Flow Meter Dimensions

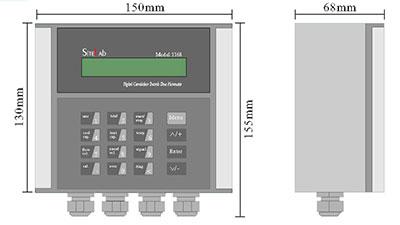

SiteLab SL1168 Ultrasonic Flowmeter Transmitter Dimensions

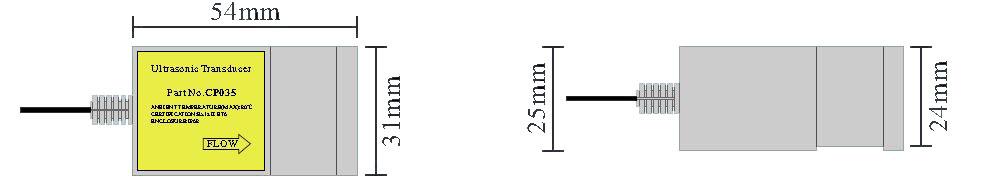

SiteLab SL1168 Ultrasonic Flowmeter Transducer Dimensions

SL1168 Transit Time Flow Meter Wiring Diagram

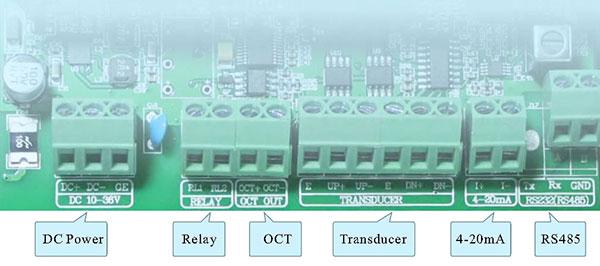

SiteLab SL1168 Ultrasonic Flowmeter Wiring Diagram





  • Flow Type: Liquid Flow Meters
