M24 Differential Gauge

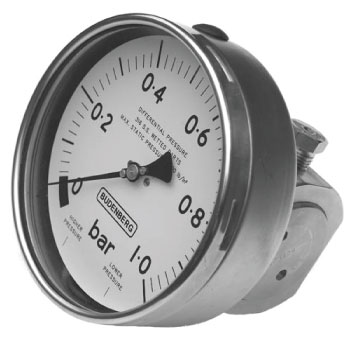

M24 Bellows Type Differential Gauge from Budenberg Australia @ Procon Instrument Technology

Bellows Type Differential Pressure Gauge

The Budenberg model M24 range of Differential Pressure Gauges has been designed for applications that require the measurement of low differential pressures whilst accommodating very high static pressures.

It has been designed around a balanced bellows system, which converts the differential pressure into a rotary movement by way of a torsion tube assembly and mechanical linkages. The entire assembly is liquid filled, producing a hydraulic self-lubricating measurement system that allows for full line pressure to be applied to either side of the unit without damage to the device.

The M24 instruments are available in a range of differential ranges and static pressures and can be manufactured in a wide variety of materials, connection sizes, and installation options.

    contact us   for pricing and availability of the Budenberg M24 Differential Pressure Gauge.



The scale ranges for M24-2

  • 0 to 75 mBar up to 70 Bar or equivalent units of pressure
  • Option: Zero-based, elevated zero, suppressed zero calibrations
  • Scales down to 25mBar optional with larger bellows.

The scale ranges for M24-6

  • 0 to 75 mBar up to 70 Bar or equivalent units of pressure
  • Option: Zero-based, elevated zero, suppressed zero calibrations



The M24 Gauge from Budenberg is suitable for the following applications/industries

Power Generation Pressure Gauges

Power Generation
Pressure Gauge

Oil and Gas Pressure Gauge

Oil & Gas
Pressure Gauge

Petrochemical Pressure Gauge

Petrochemical
Pressure Gauge



Budenberg model M24 Differential Gauge Specifications

 Size
 M24-2 100mm (4")
 M24-6 150mm (6")
 Mounting
 Direct Mounting
 Surface Mounting via a stainless steel wall bracket or a standard 2" pipe York mount with 'U' bolts
 Panel Mount via a special stainless steel bracket
 Scale Ranges
 M24-2
 0 to 75 mBar up to 70 Bar or equivalent units of pressure
 Option: Zero-based, elevated zero, suppressed zero calibrations
 Scales down to 25mBar optional with larger bellows
 M24-6
 0 to 75 mBar up to 70 Bar or equivalent units of pressure
 Option: Zero-based, elevated zero, suppressed zero calibrations
 Pressure Connection  The process connections are duplicated on the top and bottom of the differential cell to facilitate gas or liquid measurement connection and venting.
 Standard Connection
 1/2" x 1/2" BSP (P) Female
 1/2" x 1/2" NPT Female
 Overload  The unit will withstand the maximum line pressure to either side of the unit and up to 750 Bar static pressure.
 Pressure Element
 Brass / Bronze 75 mBar to 7.6 Bar differential pressure
 316 Stainless Steel 150 mBar to 27.5 Bar differential pressure
 Inconel / St St 150 mBar to 69 Bar differential pressure
 Option: Other bellows materials are available, including Hastelloy
 Accuracy Class
 ±0.75% FSD on ranges up to 1 Bar differential
 ±1.00% FSD on ranges from 1 to 30 Bar differential
 ±1.50% FSD on ranges from 31 to 69 Bar differential
 Temperature Effect
 Operating: -40 to +200°c
 Storage: -50 to +250°c
 Environmental  IP55 as defined in EN 60 529
 Equalising Valves  Budenberg recommends the use of needle-type isolating or equalising valves for use with this instrument, as quick operating valves can cause harmful pressure surges.
 Certification Available
BS EN 10204 3.1B certification.
 Point by Point Test certificate.
 Safety  All units are manufactured to comply with EN837-1. All cases are fitted with a blow-out vent.

model M24 Gauge Dial Specifications

 Size
 M24-2 100mm (4")
 M24-6 150mm (6")
 Dial
 White Anodised Aluminium marked in black
 Single or Dual Scale
 Pointer  Black Micro Adjustable Knife Edge Pointer
 Movement
 316L Stainless Steel Construction
 Option: Viscous damped movement to overcome the effects of minor pressure pulsations.
 Window
 3mm Laminated Safety Glass (standard)
 Option: Acrylic Plastic Window


M24 range Differential Gauge Specification Sheet Download

To view all the information on the Budenberg model M24 Pressure Gauge range you can download the datasheet here

DOWNLOAD PDF  specification sheet for the M24

DOWNLOAD PDF  data sheet for the M24
