PE202 Low Flow Magmeter by Seametrics

PE202 Low Flow Magmeter by SeametricsCorrosion resistant flow meter suitable for Agricultural & Industrial based applications

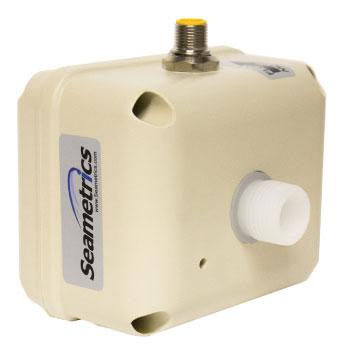

The SeaMetric's PE202 magmeter has been designed for low-flow chemical injection or difficult-to-meter applications with pulsating metering pumps in 3/4” to 1/4” pipe/tube. The housing is made of sturdy splashproof HDPE plastic. With no moving parts, the it can handle fluids containing particulate matter without clogging or jamming, keeping maintenance at a minimum. No metallic parts (100% PVDF body and PVDF carbon fiber-filled electrodes) mean that the PE202 flow meter is corrosion-resistant and compatible with a wide range of chemicals. Accuracy is maintained with conductive fluids (>20 microSiemens) of varying viscosities and densities.

This meter is compact enough to fit most pump/injection systems. With zero straight pipe required after an elbow, it can be easily mounted in tight spaces. The mounting bracket adds stability. The PE202 meter also has an optoisolated current sinking pulse output that can be connected to the Seametrics FT430/440 rate/total display or FT520 batch processor, as well as an optoisolated 4-20 mA current loop for powering analog devices.

Outputs and power are provided through a 20 foot (6 meter) cable with 8-pin female circular connector.



Applications: Chemical injection, Corrosive materials, Low flow applications, Pulsating flows (ie: metering pump)

Features
Specifications
Downloads

  • No moving parts
  • Requires no straight line
  • Pulse and/or 4-20mA output
  • Chemical and corrosion resistant
  • Insensitive to fluid density and fluid viscosity changes

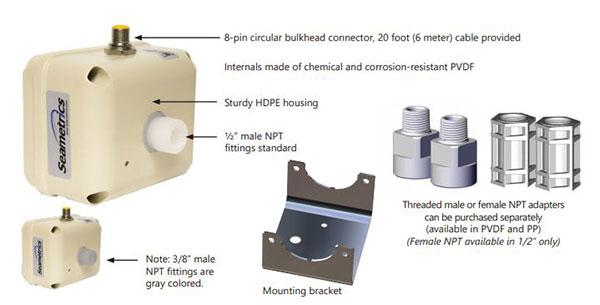

Features of the PE202 Magmeter by SeaMetrics


Pipe Sizes 19mm (3/4"), 12.7mm (1/2"), .95mm (3/8”), 0.63mm (1/4")*
Fittings 1/2" NPT fittings standard in 3/4" or 3/8" flowbody. NPT threaded adapters available for above pipe sizes.
Materials
Body: PVDF
Electrodes: PVDF carbon fiber filled
Ground: PVDF carbon fiber filled
Housing: HDPE with 25% glass
Adapters (NPT): Polypropylene or PVDF
Dimensions refer to Data Sheet
Temperature
Ambient: -18°c to 54°c
Fluid: 0°c to 93°c
Pressure 150 psi
Flow Range
-075: 20 gpm maximum (0.2 pgm cutoff)
-038: 3 pgm maximum (0.03 gpm cutoff)
Accuracy
-075: +1% plus +0.005 pgm of reading across rated range
-038:  +1% plus +0.002 pgm of reading across rated range
Signal Output
Optoisolated current sinking or current sourcing pulse output: 30 Vdc, 5 mA max
Optoisolated 4-20 mA current loop: 7 Vdc plus load voltage drop min; 50 Vdc max
-075: 500 pulses/liter (1892 pulses/gallon)
-038:  1000 pulses/liter (3785 pulses/gallon)
Power
 10 - 15 Vdc, 150mA (linear power supply recommended)
Conductivity >20 microSiemens/cm
Environmental NEMA 4X standard, IP66 splashproof standard
Empty Pipe Detection Hardware/software, conductivity-based
Specifications subject to change
* Requires adaptors
NOTE: Consult factory for applications flowing sodium hypochlorite, sodium chlorite, sodium chlorate.

For applications with the listed chemicals, the following conditions apply:
  • Max concentration 15% / Max temperature 37.77˚c
  • Flow is greater than 20% of max for accurate reading


For more information on the PE202 Flow Meter download the PDF here

DOWNLOAD PDF

Flow Type: Liquid Flow Meters
