964GP/564GP Safety Pattern Gauge

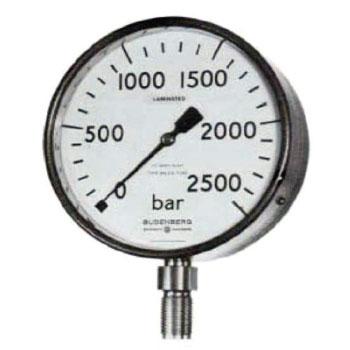

964GP 564GP High Pressure Gauge Budenberg Australia @ Procon Instrument Technology

Very High-Pressure Guage with Safety Pattern

The Budenberg models 964GP and 564GP have been designed for use on high-pressure applications such as hydraulic power packs and pressure testing equipment.

They are also suitable for pressure measurements on hydraulic metal forming, sintering, and auto frettage chemical processes.

The models 964GP and 564GP meet the American Petroleum Institute Specification 14.D.

All models are of Safety Pattern construction.

    contact us   for pricing and availability of the Budenberg 964GP & 564GP Pressure Gauge.



The Budenberg 964GP & 564GP Pressure Gauge is suitable for the following applications/industries

Oil and Gas Budenberg Australia @ Procon Instrument Technology

Oil & Gas
Pressure Gauge

Budenberg 964GP/564GP Specifications

 Size
 964GP 150mm (6")
 564GP 250mm (10")
 Mounting
 Direct / Surface / Flush
 Case & Bezel
 150mm Models have 316 Stainless Steel Cases and Bezels
 250mm Models have Aluminium Cases and St Steel Bezels
 Scale Ranges
 0 to 1600 Bar up to 4000 Bar or equivalent units
 Standard Ranges as per EN837-1.
 Pressure Element  316 Stainless Steel Coil & Socket
 Pressure Connection
 Direct Mounting: 1/2"BSP with a length of 32mm (1.25") with a flat end face and 3mm(0.125") inlet to accommodate a small hardened Stainless Steel coned joint ring.
 Other connections are available upon request.
 Accuracy Class
 CL:1 1.0% of FSD as defined in EN837-1
 Option: 0.5% of FSD as defined in EN837-1
 Temperature
 Operating: -20 to +90 ºC
 Storage: -40 up to +100 ºC
 Options: for lower or higher operating temperatures
 Temperature Effect
 Variation in indication caused by temperature shall not exceed
 +0.04 x (t2 - t1)% of the span where:
 t1 is the reference ambient temperature in degrees Celsius
 t2 is the ambient temperature in degrees Celsius
 Environmental  IP65 as defined in EN 60 529
 Certification & Traceability
 Individually calibrated with a unique serial number printed on the dial.
 A certificate of Conformity traceable to National Standards is supplied
 Available Certification: BS EN 10204 3.1B Material Certification
 Point-to-Point Test Certificate
 All instruments are individually calibrated and have a unique Serial Number printed on the dial.
 Safety  All units are manufactured to comply with EN837-1, S3 Specification, and other regulatory standards including PED.

Classic 964/564 Series Dial Specifications

 Size
 964GP 150mm (6")
 564GP 250mm (10")
 Dial
 White Anodised Aluminium marked in black finish
 Single or dual scale
 Pointer
 Stainless steel coloured black
 Options: Micrometer adjustable pointer
 Movement  Stainless steel construction
 Options: Viscous damped movement to overcome the effects of minor pressure pulsations
 Window
 3mm Laminated Safety Glass (standard)
 Option: Acrylic Plastic Window


964 / 654 Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 964GP & 654GP Pressure Gauges you can download the datasheet here
