966TGP - Safety Pattern Budenberg Pressure Gauge

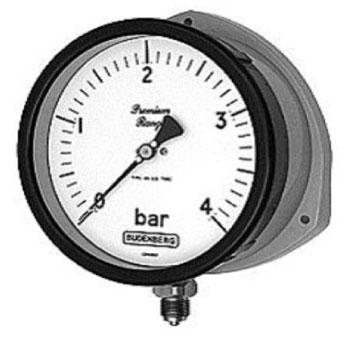

966TGP Bourdon Tube Pressure Gauge

Bourdon Tube Pressure Gauge - DMC Cased, Safety Pattern, Outdoor Use

Model 966TGP Industrial service gauge is manufactured with a special DMC (Dough Moulding Compound) safety case and stainless steel wetted parts.

With the DMC’s high impact strength, it complies with OCMA (Oil Companies Materials Asso'n) specification for pressure gauges and can be used for applications anywhere in the world, offshore, desert, and in chemical plants for example. All Budenberg DMC cases are full Safety Patterns and are suitable for compatible gases and liquids at high pressures.

This is a prime example of a low-maintenance pressure gauge for the most arduous application, and it can be fitted to our complete range of diaphragm seals.

   contact us   for pricing and availability of the Budenberg 966TGP Pressure Gauge.

The Budenberg 966TGP Pressure Gauge is suitable for the following applications/industries

Oil & Gas Pressure Gauge

Oil & Gas
Pressure Gauge

Budenberg Chemical Pressure Gauges

Chemical
Pressure Gauge

Petrochemical Pressure Gauges Budenberg Australia

Petrochemical
Pressure Gauge

Power Generation Pressure Gauges

Power Generation
Pressure Gauge

Water & Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Pharmaceutical Pressure Gauges Budenberg Australia

Pharmaceutical
Pressure Gauge

Budenberg 966TGP Specifications

 Size  100mm (4") & 150mm (6")
 Mounting
 Direct, Surface, and Flush
 Case & Bezel  Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow-out back manufactured in 1.6, thick 316L stainless steel.
 Scale Ranges
 0 to 600 mbar to 0 to 1400 bar Pressure.
 Equivalent units of pressure/vacuum are available. Single and dual scales are also available.
 Pressure Element
 ≤80 Bar – 316 Stainless Steel Bourdon Tube
 ≥81 Bar - 316 Stainless Steel Coil
 Overload Protection
 Units withstand overload pressure upto 130% of FSD. Overload & vacuum stops are fitted on the movement.
 Pressure Connection in 316 Stainless  Steel
 3/8" & 1/2" BSP
 1/2"NPT
 Other connections are available.
 Accuracy
 CL:1 1.0% of FSD as defined in EN837-1
 Option: 0.5% of FSD as defined in EN837-1
 Temperature
 Operating: -20 to +90°c
 Storage: -40 to +100°c
 For options for lower or higher operating temperatures, please contact our office
 Temperature Effect  Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius
 Environmental  IP67 as defined in EN 60 529
 Certification
 Individually calibrated with a unique serial number printed on the dial.
 Certificate of Conformity.
 Available Certification: BS EN 10204 3.1B Material Certification Point-by-Point Test Certificate
 Traceability  All instruments are individually calibrated and have a unique Serial Number printed on the dial.
 Safety  All units are manufactured to comply with EN837-1, S3 Specification, and other regulatory standards including PED.

966TGP Dial Specifications

 Size  100mm (4") & 150mm (6")
 Dial
 White Anodised Aluminium marked in black finish
 Single or Dual Scale
 Pointer
 Stainless Steel coloured black
 Options: Micrometer Adjustable Pointer
 Movement
S tainless Steel Construction
 Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
 Window
 3mm laminated Safety Glass (standard)
 Option: Acrylic Plastic Window


966TGP Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 966TGP Pressure Gauge you can download the datasheet here
