SL3488D Plus Multipath Ultrasonic Flow Meter

SL3488D Plus FlowmeterThe Model SL3488D Plus Ultrasonic Flowmeter from SiteLab is a state-of-the-art universal transit-time flowmeter that has been designed using ARM COMA technology and low voltage broadband pulse transmission. Principally designed for clean liquid applications, the instrument is tolerant of liquids with small amounts of air bubbles or suspended solids found in most industrial environments. Compare with other traditional flowmeters or ultrasonic flowmeters, it has distinctive features such as high precision, high reliability, high capability and low cost, this versatile flowmeter features other advantages.

With ARM COMA chip, low power consumption, high reliability, anti-jamming and outstanding benefits. It has a user-friendly menu. Parameters of pipe range, pipe material, pipe wall thickness, output signals, etc can be conveniently entered via the windows. British and Metric measurement units are available.

With the TF Card, 512 files can be stored; the time interval can be within 1 second. Parallel operation of positive, negative and net flow totaliser with scale factor and 7 digit display. Internally configured batch controller makes batch control convenient. The flow meter ensures the higher resolution and wider measuring range by the 0.04nS high resolution, high linearity and high stability time measuring circuit and 32 bits digits processing program.


SL3488D Plus Flowmeter Specifications

Performance Specifications     Flow Range 0.01m/s ~ 7m/s
Spool piece type: +0.2% of measured value
Insertion type: +0.5% of measured value
Spool piece type: 0.07%
Insertion type: 0.15%
Pipe Size
Spool piece type: 100mm ~ 600mm (additional customisation is required for 600mm above)
Insertion type: 100mm ~ 5000mm
Frequency Range: 2.4 - 2.4835GHz
Transmit Power: 12-14dBm
Transmission Distance: 15-20m (without any obstacles)
Wireless Standard: IEEE802.11n, IEEE02.11g, IEEE802.11b
Functional Specifications Outputs
Analogue output: 4~20mA, max load 750Ω
Pulse ouput: 0 ~ 9999Hz, OCT output (adjustable)
Relay output: 125VAC@1A or 30VDC@2A
Communication: RS232 / RS485 communication interface, supports Modbus Protocol
TF Card
Max records: 4GB
Storage time interval: 1 ~ 13000s
Power Supply 90 ~ 250VAC, 48 ~ 63Hz or 10 ~ 36VDC
Keypad 24 light tactile keys
Dispaly 4.7" TFT colour screen (English/Traditional)
Transmitter: -10°c ~60°c
Transducer: -40°c ~80°c (standard)
Humidity Up to 99% RH, non-condensing
Physical Specifications Transmitter Die-cast aluminium (IP65)
Protection grade: IP68, encapsulated design
Standard cable length: 9m
Weight Transmitter: approx 1.0kg


SL3488D Plus Multipath Flowmeter dimensions

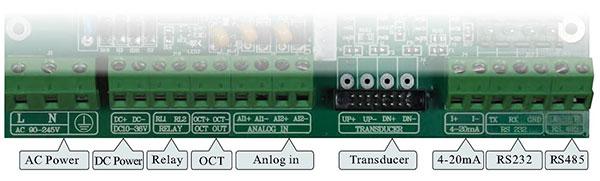

 SL3488D Plus Flowmeter Wiring Diagram

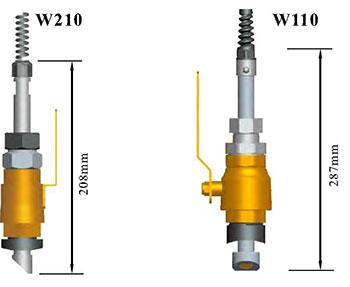

SL3488D Plus Flowmeter Transducer Dimensions

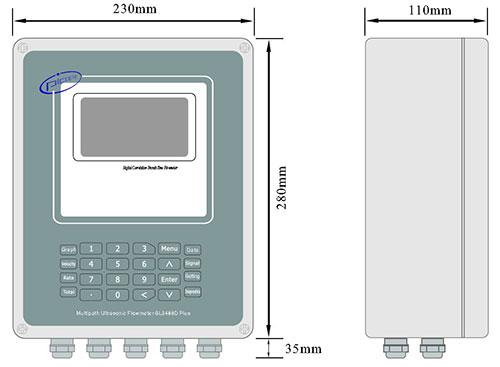

SL3488D Plus Flowmeter Transmitter Dimensions

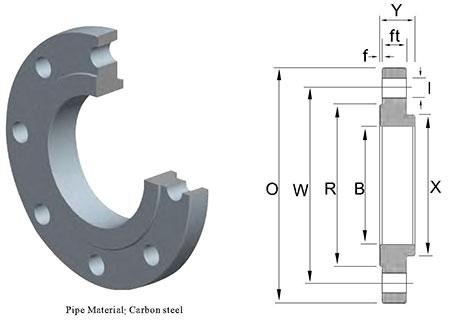

SL3488D Plus Flowmeter Flange Dimensions

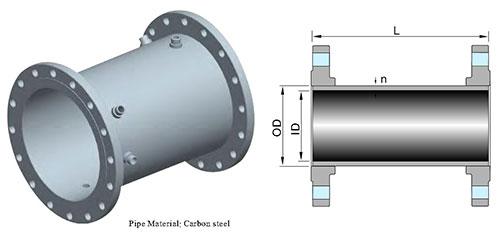

SL3488D Plus Flowmeter Spool Dimensions




SL3488D Flowmeter Document Downloads

 for Specifications and Drawings

Flow Type: Liquid Flow Meters
