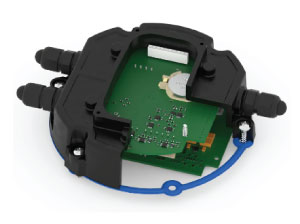

The Flomec QSI Communication Module is a multi-functional electronics unit designed to enhance product functionality and provide fully-featured communication protocols and process output signals for FLOMEC® meters, while also providing data-logging functionality.
A unique feature of the QSI is that programming is simple and can be done by using the FLOMEC® App via Bluetooth® wireless interface technology. In-field firmware updates are easy with the QSI.
The QSI Communications Module is the perfect product when a local display is required with the ability to communicate flow data via MODBUS or BACNET serial communications.
Features & Benefits:
- Calculates flow and totals from pick-up coil or digital input pulses
- Measures temperature from PT100 RTDs
- BTU (heat) meter calculates energy from flow and temperature inputs
- Data logger - stores all measured and calculated variables on internal flash memory
- Access Data Logger information through FLOMEC® app
- Communication options available: Modbus® RTU and BACnet™ MS/TP
- Built-in Bluetooth® wireless technology
- External Programming FLOMEC® App available for mobile devices
- Receive in-field firmware updates
- Standard process outputs: Pulse out and 4-20mA
The standard QSI configuration does not come with a display, however, an optional display choice is available.
| 09 DISPLAY |
Field-Configurable - 3 Totals (2 Resettable, 1 Cumulative)
Rate of Flow Indication
and 2 Calibrations (Factory and User). *Will not display Energy Consumption.
|
*Energy Consumption can be displayed on the FLOMEC App, or transmitted out via RS485 or pulse out.
| Q1 |
Bluetooth®, Coil/Digital Pulse Input, Pulse Output (Scalable Flow or Energy)
RS485 (MODbus®, RTU or BACnet® MS/TP), Temperature Inputs
BTU (Heat) Calculator Note: Temperature Inputs require Temp Sensor Probes - see below)
|
| Q2 |
Bluetooth®, Coil/Digital Pulse Input, Pulse Output (Scalable Flow or Energy)
Data Logger, Temperature Inputs, BTU (Heat)
Calculator Note: Temperature Inputs require Temp Sensor Probes - see below)
|
| Q3 | Bluetooth®, Coil/Digital Pulse Input, Pulse Output (Scalable Flow), Data Logger, 4-20mA |
Order (Two) 1” (25 mm) long Temperature sensor probes w/10’ (3 m) cable for 1/2” thru 2” meters; (Two) 2” (50 mm) long Temperature sensor probes w/10’ (3 m) cable for 3” & 4” meters.
Flomec QSI Communication Module Downloads
Download the Data Sheet for specifications
for the Flomec Communication Module
Completely control the meter configuration from your mobile device. A Special Programming Interface for the QSI is FLOMEC’s new application for Android devices.
It’s free and available for download from the Google Play store, just search for “FLOMEC”.
- Monitor all measured and calibrated data points
- Single page screens for easy set-up
- Allows GPI to develop new firmware and deploy it to customers
- Makes in-field firmware updates a snap.
Downloadable to the QSI using the built-in Bluetooth wireless connection
