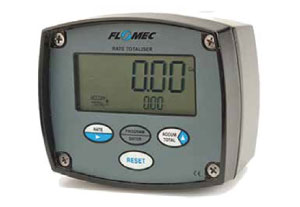

The Flomec RT40 Rate Totaliser is the perfect display for users who require a simple local display with no output signals.
The RT40 features a large dual-line backlit LCD, which provides optimal readability from a distance or in low-light conditions. A robust Aluminium enclosure with a polycarbonate screen protector makes the product suitable for heavy-duty use in mine sites, truck installations, or any industrial setting.
The Flomec RT40 Rate Totaliser is the perfect product for safe-area applications where a local display is required, with no outputs.
Featuring
- Economic and robust LCD display suitable for mine sites and service truck installations
- Large backlit** LCD screen displaying 5-digit flow rate, 6-digit resettable total, and 8-digit cumulative total
- Battery or externally powered; battery lifespan is 3 years, approximately**
- Robust IP65 Aluminum housing or IP66/67 Glass reinforced nylon housing capable of being field or panel mounted
- Scaled pulse output**
- Universal inputs
- Reverse polarity protection
- Flowmeter and pipe mount kits are available
- PIN-protected programming with a simple programming flowchart
**External power is required for backlight or pulse output features.
Product Configuration
| 1. PRODUCT IDENTIFIER | RT40 = Flow Rate Totalizer with backlit large digit LCD, scalable pulse output, and aluminum IP66 housing |
| 2. ELECTRICAL ACCESS | 1 = M16 x 1.5mm for Al housing female threaded conduit entry ports (sealed ports remain IP66/67 when not used) |
| 3. FLOW INPUT TYPE | D = Digital (pulse or frequency) |
| 4. POWER SUPPLY | 0 = Self-powered (battery) or regulated 8-24 V (dc) |
| 5. HOUSING TYPE | FA = Universal mount (field or panel) - aluminum housing |
| MA = Integral meter mount - aluminum housing* | |
| 6. MECHANICAL OPTIONS | -P = Facia protector - for aluminum housing only (3 mm clear polycarbonate protection plate) |
*Only order MA when retrofitting an instrument to OM series pulse meters
example
| 1 | 2 | 3 | 4 | 5 | 6 |
| PRODUCT IDENTIFIER | ELECTRICAL ACCESS | FLOW INPUT TYPE D | POWER SUPPLY | HOUSING TYPE | MECHANICAL OPTIONS |
| RT40 | 1 | D | 0 | FA | -P |
Flomec RT40 Rate Totaliser Downloads
Download Data Sheet
