269 Vacuum Pressure Gauge

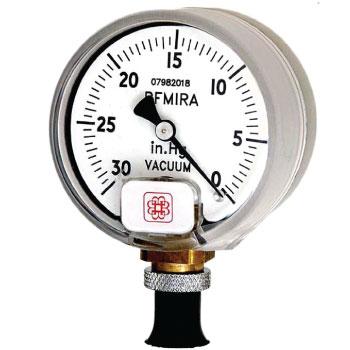

269 BFMIRA Vaccum Gauge Budenberg Australia @ Procon Instrument Technology

BFMIRA Vacuum Gauge (Can Piercing Test)

The Budenberg model 269 is a high-specification vacuum gauge that has been specifically designed for use in estimating the intensity of the vacuum in a food can.

Using an ordinary vacuum gauge fitted with a piercer is usually very inaccurate and does not allow for the dilution of the headspace vacuum by the entry of air at atmospheric pressure from the gauge. Ordinary vacuum gauges therefore always give a lower reading than the vacuum which existed in the headspace before the can was pierced and if the headspace is small, the error is compounded.

This Budenberg pressure gauge was developed by the British Food Manufacturing Industries Research Association and it overcomes disabilities in an ingenious manner.

  contact us   for pricing and availability of the Budenberg 269 Pressure Gauge.



The Budenberg 950GP Pressure Gauge is suitable for the following applications/industries

Food Beverage Budenberg Australia @ Procon Instrument Technology

Food & Beverage
Pressure Gauge

Budenberg 269 Specifications

 Size  63mm (2.5")
 Mounting
 Direct
 Case  One-piece Polycarbonate case
 Scale Ranges
 0 to 30 inches of Mecrury (Ins Hg)
 Pressure Element
 Phosphor Bronze
 Pressure Connection
 Piercing needle inside rubber ferrule
 Accuracy Class
 CL:1 1.0% of FSD as defined in EN837-1
 Temperature
 Operating: -20 to +90°c
 Storage: -40 to +100°c
 For options for lower or higher operating temperatures, please contact our office
 Temperature Effect  Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees Celsius / t2 is the ambient temperature in degrees Celsius
 Puncturing Needle and   Ferrule  316L Stainless Steel Needle and Rubber Ferrule
 Environmental   IP67 as defined in EN 60 529
 Certification & Traceability
 Individually calibrated with a unique serial number printed on the dial.
 A certificate of Conformity traceable to National Standards is supplied
 Available Certification: BS EN 10204 3.1B Material Certification
 Point-to-Point Test Certificate
 All instruments are individually calibrated and have a unique Serial Number printed on the dial.
 Safety  All units are manufactured to comply with EN837-1, S3 Specification, and other regulatory standards including PED.

Classic 269 Series Dial Specifications

 Size  63mm (2.5")
 Dial
 White Anodised Aluminium marked in black finish
 Single or Dual Scale available
 Pointer
 Stainless steel coloured Black
 Movement
 316L Stainless Steel Construction
 Window
 3mm laminated Safety Glass (standard)
 Option: Acrylic Plastic Window

269 Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 269 Pressure Gauge you can download the datasheet here
