SES Stainless Single Jet Meter by Seametrics

SES Stainless Steel Single jet Meter  by Seametrics @ Procon Instrument TechnologyChemical Batching & Injection Flow Meter

The SES single-jet meter provides accurate, wide-range flow metering in an extremely rugged stainless steel package. Single-jet simplicity combined with high-quality jewel bearings results in long life and a relatively high tolerance for problem fluids. Typical applications are chemical batching, proportional chemical injection, fertilizer injection, proportioning of spray chemicals, and general flow rate monitoring.

The sensor is easily replaced from outside the meter and is compatible with most of the Seametrics indicators and transmitters, as well as most controls and PLCs that accept DC inputs. The standard rotor is PVDF (Kynar®) and the shaft is a special nickel-bonded tungsten carbide. The optional ceramic shaft increases resistance to some concentrated chemicals. The standard O-ring is Teflon®-coated Viton®.

Features

  • Accurate at low flows
  • Simple and durable
  • Rugged body
  • High tolerance for problem fluids
  • 5.5m Sensor cable (low powered - dark blue / Micropower - grey)
  • Field replaceable thread in the sensor (6-24 Vdc pulse)
  • 316 Stainless steel body
  • Female NPT Thread
  • Removeable 316SS cover
  • Hex Screws

Applications

  • Low flow monitoring
  • Chemical batching
  • Proportional chemical injection
  • Fertilizer injection

Specifications

 Connection Ports  1/2", 3/4", 1" - Female NPT Thread
 Sensor Cable  6 m standard cable - maximum cable run 607m
 Materials
Body   316 Stainless Steel
Rotor   PVDF (Kynar®) - 2 magnets (6 magnets high resolution optional)
Shaft   Nickel-bonded tungsten carbide (ceramic or silicon carbide optional)
O'Ring   Teflon®-coated Viton® (Viton® or EDPM optional)
Bearings   Ruby ring and ball
Cover   316 Stainless steel
 Maximum Temperature  9 3°C
 Maximum Pressure  35 Bar
 Accuracy  + 1% of the full scale
 Power  Standard: 6-36 Vdc, < 2 mA
 Micropower: 3.1-16 Vdc, 60 μA @ 3.6 Vdc (for FT450 and DL76 only)
 Outputs  Current sinking pulse, 6-24 Vdc

DOWNLOAD PDF  for the SES Flow Meter by Seametrics

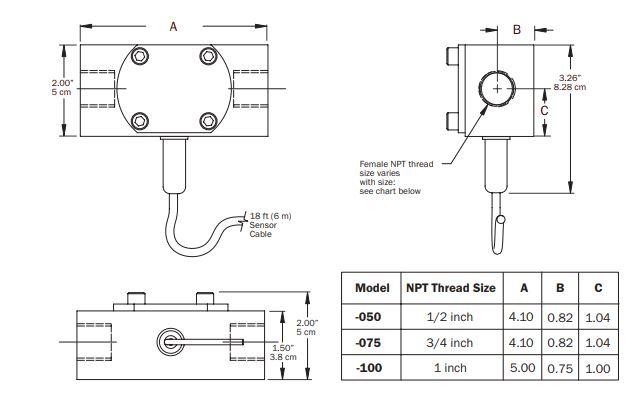

Dimensions

SES Stainless Single Jet Meter by SeaMetrics - Dimensions

  • Flow Type: Liquid Flow Meters
