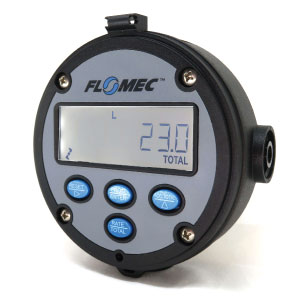

The Flomec RT14 Rate Totaliser is the perfect display for users who require a more sophisticated local display that can also interface with external control or monitoring equipment. The RT14 features a backlit LCD, which provides optimal readability from a distance or in low-light conditions. Various output options are available to suit almost any flow measurement application, with a 4-20mA analogue signal for flow rate feedback and control, flow alarms for monitoring critical processes, and a scaled pulse signal for remote monitoring of total volumes. The RT14 is housed in a robust glass-reinforced nylon enclosure with an IP66/67 rating, rubberised buttons, and a polycarbonate screen protector. The FLOMEC® RT14 is a fantastic product for almost any flow measurement application in both safe and hazardous areas.
The RT14 Rate Totaliser is the perfect product when a local display is required with the ability to interface with external control and monitoring equipment (PLC, SCADA, DCS).
Control Outputs
An unscaled pulse output serves as an input signal amplifier ideally suited for coil-type inputs from the turbine or paddle wheel meters. The output can be transmitted over and can be configured for NPN/PNP with a wiring connection.
Programming
Simple PIN-protected flowchart programming with English prompts guides you through the programming routine greatly reducing the need to refer to the instruction manual.
Features
- Self or externally-powered, 8-digit LCD total & 8-digit cumulative totaliser, 5-digit rate display
- Robust IP66/67-NEMA4X universal mount glass reinforced nylon enclosure with rubberized buttons and polycarbonate lens
- GRN field & panel mountable housing
- Scaled pulse, 4-20mA (Loop Powered) Output, multi-point linearization of flow input or frequency inputs
- Flow alarm for high, low or high/low
- PIN protected programming
- Simple flowchart touch key programming
- Reverse polarity protection
- Non-volatile memory, Long battery life
- Flow meter and pipe mount kits are available
Applications
- Mounted either direct to the meter or remotely mounted in safe areas
- Connections to PLC available
- Total, Accumulated Flowrate display
- 10 point Linearisation
Product Configuration
| 1. PRODUCT IDENTIFIER | RT14 = Oval Gear Meter |
| 2. ELECTRICAL ACCESS | 1 = M20 x 1.5 mm female threaded conduit entry ports |
| 2 = ½ inch NPT female threaded conduit entry ports | |
| 3. FLOW INPUT TYPE | D = Digital (pulse or frequency) |
| 4. POWER SUPPLY | 0 = Self-powered (battery) or regulated 12-30V (dc) |
| 5. HOUSING TYPE | FM = Universal mount (field or panel) – GRN housing |
| MA = Integral meter mount – GRN housing* | |
| 6. MECHANICAL OPTIONS | -I = Intrinsically safe IECEx/ATEX (EXia IIB T4) |
* Only order MM when retrofitting an instrument to OM series pulse meters
example
| 1 | 2 | 3 | 4 | 5 | 6 |
| PRODUCT IDENTIFIER | ELECTRICAL ACCESS | FLOW INPUT TYPE D | POWER SUPPLY | HOUSING TYPE | MECHANICAL OPTIONS |
| RT14 | 1 | D | 0 | FM | -I |
Flomec RT14 Rate Totaliser Downloads
Download the Data Sheet for specifications and a dimensions diagram.
