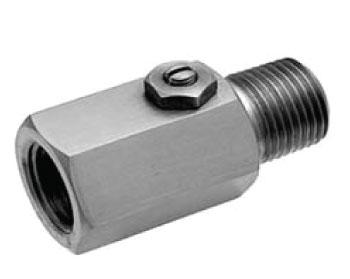

ASN8M8F Snubbers

ASN8M8F Snubber Budenberg Australia @ Procon Instrument Technology

Snubbers Adjustable for High Pressure

The Budenberg Adjustable Snubber has been designed to meet the demand for protection of instruments such as pressure gauges, where the applications have rapid pulsations or sudden hydraulic shock loading that can cause damage to them.

The level of damping is by the adjustment of a needle valve that restricts the flow, and therefore protects the pressure gauge against pulsations. This aids the reading of the fluctuating pressure, and helps to prolong the life of the instrument.

Suitable for mechanical and construction industries that use hydraulic pumps and presses that are susceptible to pulsations. The adjustable snubber offers a controllable solution for these applications.A unique feature of this design is that the adjustment to the damping can be made after installation in the system.

Suitable for all media that is resistant to 316 Stainless Steel.

    contact us   for pricing and availability of the Budenberg Snubbers




Industries
Specifications
Download


The Budenberg CMT Pressure Gauge Syphones are suitable for the following applications / industries

Oil and Gas Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Oil & Gas
Pressure Gauge
Petrochemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Petrochemical
Pressure Gauge
Chemical Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Chemical
Pressure Gauge
Power Generation Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Power Generation
Pressure Gauge
Waste Water Pressure Gauge Budenberg Australia @ Procon Instrument Technology
Water & Waste Water
Pressure Gauge



The Budenberg Snubber specifications

Material
Body - 316 Stainless Steel as standard up to 120°c
Other materials available on request
Connection Size
1/2" NPT Male / Femle
Adaptors available for other thread configurations
Pressure Ranges
400 Bar as standard
Temperature
Upto 120°c
Testing
100% pressure hydrostactically tested
Traceability Each syphon is stamped with unique trace- code to enable us to trace back to the original mill certificate. Therefore when requested each batch can be supplied fully in accordance to Based on 1/2" Syphon EN 10204 3.1b
Options
Customer names etched on the body, special designs undertaken



ASN8M8F Specification Sheet Download

DOWNLOAD PDF  for more information on the Budenberg ASN8M8F Adjustable Snubber
