SL1288i Handheld Ultrasonic Flow Meter

SL1288i Portable Ultrasonic Flow Meter from SiteLabThe SL1288i Portable Ultrasonic Flowmeter from SiteLab enables the user to do flow measurement checks at many points in a flow process without the need for permanent installation.

This ultrasonic flowmeter adopts Gentos unique PICOFLY time measurement technology, which could make the resolution reach 10 picoseconds (0.01 nanosecond). It realises the high respondence and high accuracy ultrasonic measurement technology and application.

Compared with other traditional flowmeters or ultrasonic flowmeters, it has distinctive features such as high precision, high reliability, high capability, and low cost, the flowmeter features other advantages:

PICOFLY technology designed. Fewer hardware components, low voltage broadband pulse transmission, and low consumption power. Clear, user-friendly menu selections make this flowmeter simple and convenient to use.

Daily, monthly, and yearly totalised flow. Parallel operation of positive, negative, and net flow totalises with scale factor (span) and 7-digit display.



SL1288i Handheld  Flowmeter Specifications

 Performance Specifications      Flow Range  +0.01m/s ~ +12m/s
 Accuracy  +0.5% of the measured value
 Repeatability  0.15%
 Pipe Size  15mm to 6000mm
 Linearity  +0.5%
 Functional Specifications   Outputs
 Analogue output: 4~20mA, max load 750Ω
 Power Supply  Rechargeable Lithium Battery Power (continuous operation of main battery 10 hours)
 Keypad  Tactile action
 Dispaly  3.5" TFT colour screen (320 x 240), backlit LCD
 SD Card
 Storage: 2GB
 Max record: 512 days
 Record time: 1 ~ 60 seconds
 Temperature
 Transmitter: -10°c ~50°c
 Transducer: -40°c ~80°c (standard)
 Humidity  Up to 99% RH, non-condensing
 Physical Specifications  Transmitter  NEMA13 (IP54)
 Transducer
 Encapsulated design IP68
 Standard cable length: 5m
 Weight  Transmitter: approx 1.0kg



SL1288i Portable Transit Time Flowmeter dimensions

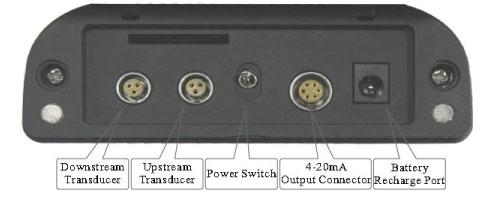

 SL1288i Flowmeter Wiring Diagram

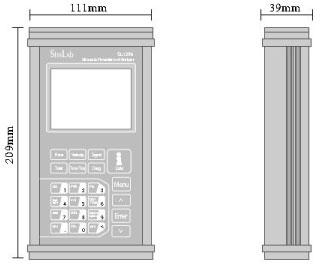

SL1288i Transmitter Dimensions

 SL1288i Flow Meter Transducer Dimensions





SL1288i Flowmeter Document Downloads

DOWNLOAD PDF  for the SL1288i Handheld Ultrasonic Flow Meter by SiteLab



  • Flow Type: Liquid Flow Meters
