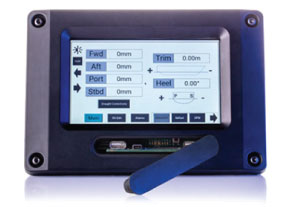

Versatile Process Monitoring Display to Make Marine Tank Monitoring Simple for Smaller Vessels.
PSM Marine's Versatile Process Monitoring (VPM) Display has been designed for smaller vessels and makes marine tank monitoring simple.
The VPM 4300 offers tank level monitoring with a centralised tank content display to present the operator with a clear display of the tank level measurements. The VPM can be configured to suit the application based on the number, size, and type of tanks to be measured.
With multiple repeater display options and simple, cost-effective installation, the VPM is the perfect choice for all your tank content indication requirements.
This versatile display is based around an intuitive user interface, with a clear graphical display of the data, putting information where it’s needed by the crew.
Flexible signal input and output options allow the interface of different types of sensors, transmitters, and relays that are used to monitor and control tank status.
Operation of the VPM 4300 is simple and intuitive using the integral touchscreen display with an onscreen popup keyboard for the entry of configuration data.
Display, control, alarm, and data storage functionality can be factory configured before dispatch, with the full ability for the user to make subsequent changes in service.
With the monitor’s advanced alarm functionality, exceptions, and incidents are quickly and clearly alerted to the crew for remedial action.
The output of all tank content data can be sent via an RS485 link using Modbus RTU to external AMS, Platform management systems, or Loading Computers.
Key Features of the VPM 4300 Display
- Display and control operator module providing an HMI (Human Machine Interface) to the process application.
- Used with PSM tank gauging and safety compliance marine systems
- Also ideal as an OEM product for other industrial applications
- 7” VGA high visibility touchscreen with popup keyboard or external keyboard/mouse.
- Powerful ARM A8 Cortex processor running the Linux operating system. Onboard SD card memory with 100% redundancy backup.
- Flexible range of Input & Output include Ethernet, RS485 with analogue and digital module options
- Panel or wall mount installation
Versatile Process Monitoring Display Downloads
For specifications, dimensions Download Data Sheet
VPM 4300
