KIMO Mini Data Loggers part of the KIMO autonomous data logger range from Sauremann.
 |

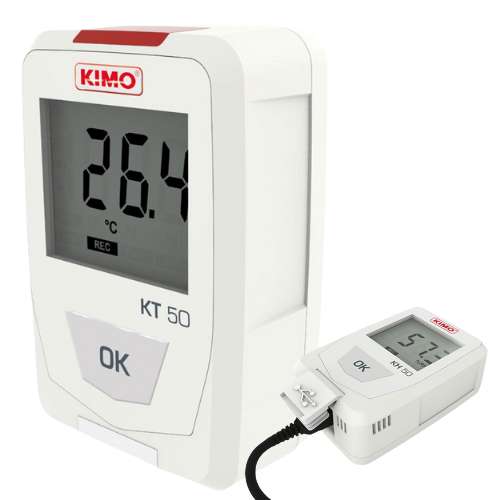

The KT 50 Mini Data Logger provides straightforward temperature readings. It is a KISTOCK Data logger suitable for HVAC - Temperature, Humidity
Featuring:
|
 |

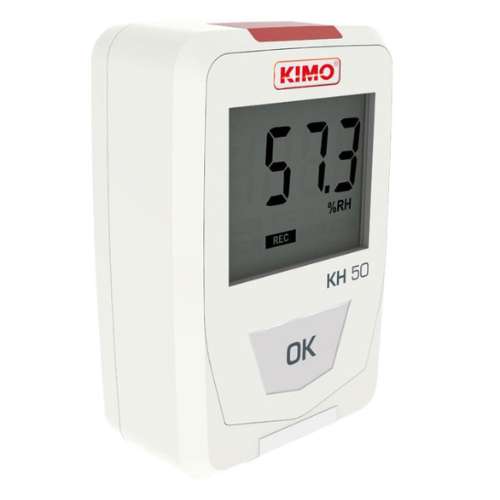

The KH 50 Mini Data Logger for when simple temperature and humidity readings are required, has 16,000 measuring points. It is a KISTOCK Data logger suitable for HVAC - Temperature, Humidity Featuring:
|
Recorder Functions
The KISTOCK allows to record the values measured instantaneously, it records the values according to a predefined interval. On the other hand, it is possible to operate continuously, the KISTOCK thanks to a loop recording.
3 types of dataset start
The measurement dataset can be launched:
• With a delayed start (with predefined date and time)
• With the software
• With push-button
• With a delayed start (with predefined date and time)
• With the software
• With push-button
6 types of dataset stop
You can stop your dataset:
- According to a date and time (if it was started the same way)
- According to a recording duration
- According to a predefined number of recording points
- If the storage capacity of the memory is full
- With the “Stop” option of the software
- By holding the “OK” key for about 5 seconds (if this function has been previously activated by the software)
Software
Freely downloadable software on sauermanngroup.com
KILOG Lite software allows configuration of the data logger, to view the data and to save data as a PDF file.
Configuration and data processing software
KILOG software allows you to configure, save and process your data in a very simple way.
- Software only: ref. KILOG-3-N
- Complete set: software + 1 interface. Ref. KIC3-N
USB-micro USB cable: CK50
This cable allows you to connect your KISTOCK to your PC.
Mounting
KISTOCK can be mounted in different ways, you can also move it or install it very easily. • Magnetic mounting (see photo)
1. Necklace for anti-theft
2. Batteries cover
3. Magnetic fixing
4. Locking sign of the battery cover
Accessories
- 2 CR2032 batteries pack. Ref. P2-50
- Data collector: collects up to 20,000,000 points from one or several KISTOCK directly on-site. Results restitution on PC of realised datasets. Ref: KNT-320
Note: Only the accessories supplied with the device must be used.
Replacing the Batteries
With 500 days* battery life, KISTOCK ensures long-term measurements. To change the batteries:
- Unlock the battery cover with a screwdriver or a coin.
- Put the 2 batteries superimposing them (3 V CR2032 button batteries) with the + pole visible.
- Put back the batteries cover: the sign of the batteries cover must be placed in front of the opened padlock.
- Turn right the batteries cover: the sign on the batteries cover must be placed in front of the closed padlock.
*For a KT 50. Non-contractual value. Based on 1 measurement every 15 minutes at 25 °C. The correct operation of the device and the storage conditions must be respected.

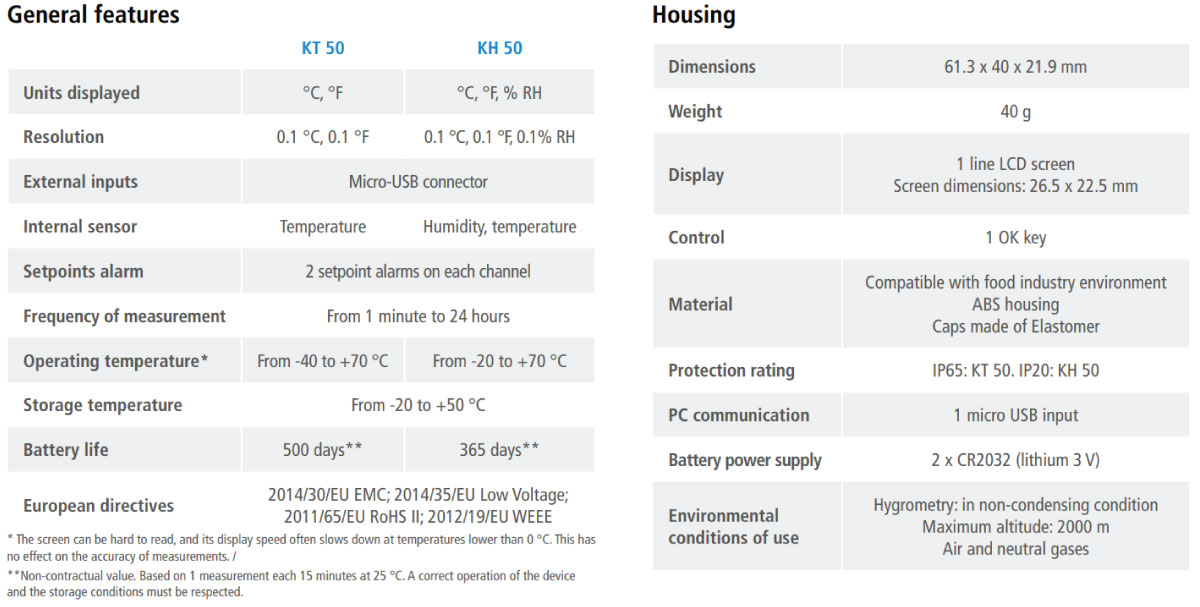

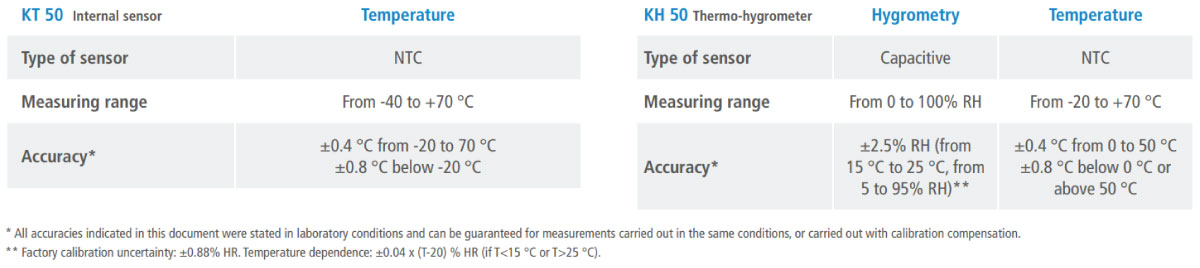

Features & Specifications
