The Flomec Medium Capacity Flow Meters provide precise volumetric flow measurements of clean liquids found in a wide range of industries including automotive, aviation, mining, power, chemical, pharmaceutical, food, paint & petroleum.
The direct volumetric measurement from the positive displacement design gives you a flow measurement that is unaffected by changes in temperature, pressure, or viscosity – factors that can cause measurement errors in other flow meter technologies.
Suitable applications include the: distribution of fuels, fuel oils, lubricants, alcohols, and solvents, the blending of bio & ethanol fuels, and the metering of chemicals, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity-fed non-conductive liquids.
With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs.
NMI Approved Meters
Meters 1" and above are available with optional NMI pattern approval and quadrature pulse output.
Featuring:
-
High accuracy and repeatability, measure every drop and saves waste in your process
-
Low-pressure drop, minimising pumping costs
-
Extremely versatile design accurately measures high and low viscosity fluids
-
No requirement for flow conditioning (straight pipe runs) gives a simple and inexpensive installation
-
Only two moving parts provide a reliable product with minimal maintenance costs
-
IECEx/ATEX models available, making the product safe to use in flammable liquid applications
-
No requirement for flow conditioning ( straight pipe runs )
-
Various rotor material options
-
Measures high & low viscosity liquids
-
Quadrature pulse output option & bi-directional flow
-
Integral 4-20mA output option
-
Optional Exd I/IIB approval (ATEX, IECEx)
Typical Applications Include Dispensing or Bulk Transfer of:
- Diesel fuel
- Petrol (gasoline) with or without ethanol content
- Biofuels
- Kerosene
- Glycols / Anti-Freeze
- Diesel Exhaust Fluid (DEF / Adblue)
- Lubricating oils and greases
- Edible oils
- Solvents
- Resins and adhesives
- Fertilizers, herbicides, insecticides

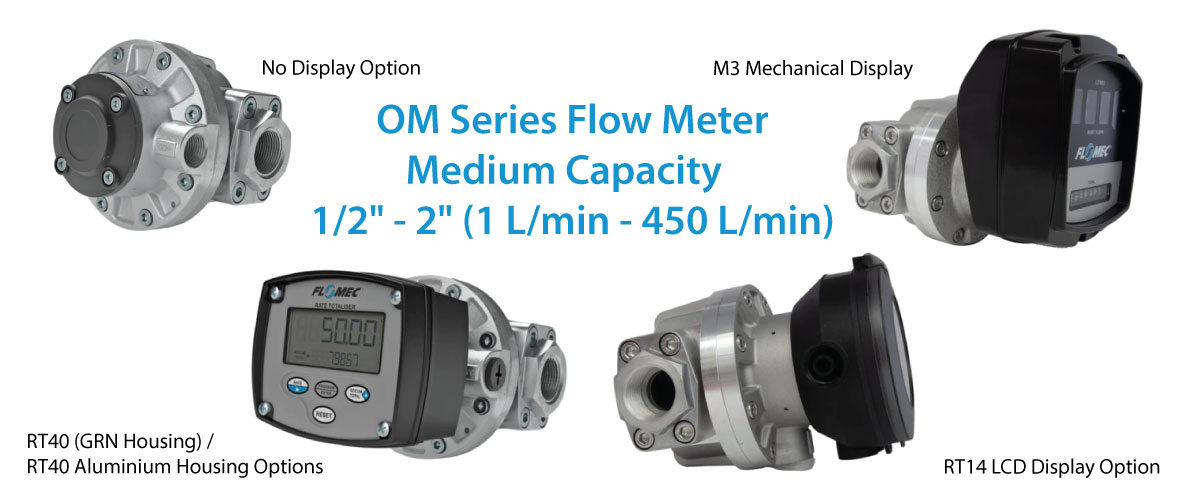

Flomec Medium Capacity Flow Meters Models & Specifications
| OM015 | OM025 | OM040 | OM50 | OM50E | |
| Pipe Size |
15mm (1/2")
|
25mm (1")
|
40mm (1.5")
|
50mm (2")
|
50mm (2")
|
|
*Flow range - GPM
Flow range - LPM
|
0.26~10.6
1 - 40
|
2.6~40
10 - 150
|
2.6~66
15 - 250
|
8~120
30 - 450
|
9~150
35 - 580
|
| **Accuracy@3cp | + 0.5% of reading (accuracy is + 0.2% of reading with optional RT12 with non-linear correction) | ||||
| Repeatability | typically + 0.03% of reading | ||||
| Temperature range | -20°c ~ +120°c, refer to the factory for lower temperature | ||||
| Maximum Pressure | PSI (bar) Threaded Meters | ||||
| Aluminium meters | 990 (68) | 990 (68) | 435 (30) | 285 (20) | 285 (20) |
| Intermediate press. AL | - | 2000 (138) | - | - | - |
| 316 stainless steel | 990 (68) | 990 (68) | 435 (30) | 550 (38) | |
| Intermediate press. SS meter | 1450 (100) | 1450 (100) | 725 (50) | 725 (50) | |
| *** High pressure models | 5800 (400) | 5800 (400) | 5800 (400) | 4350 (300) | |
| Maximum pressure (Mechanical Meter) | PSI (Threaded meters) bar | ||||
| Aluminium | 580 (40) | 580 (40) | 535 (30) | 285 (20) |
285 (20) |
| 316L stainless | 580 (40) | 580 (40) | 535 (30) | 285 (20) | - |
Electrical - for pulse meters (see also option outputs)
| Outut pulse resolution | pulses / litre | ||||
| Reed switch | 318 (84) | 102 (27) | 53 (14) | 25 (6.5) | 18 (4.8) |
| Hall effect | 636 (168) | 405 (107) | 212 (56) | 99 (26) | 73 (19.2) |
| QP - Quadrature Hall Option | 636 (168) | 204 (54) | 106 (28) | 49 (13) | 36 (9.6) |
| Reed switch output ** | 30Vdc x 200mA max. [maximum thermal shock 10°c/minute] | ||||
| Hall effect output (NPN) | 3 wire open collector, 5~24Vdc, 20mA max. | ||||
| Optional outputs | 4-20mA, scaled pulse, quadrature pulse, flow alarms, or two state batch control | ||||
Physical Specifications of the OM Series Medium Capacity Positive Flow Meter
| Protection class | IP66/67 (NEMA4X), optional Exd I/IIB T4/T6, integral ancillaries can be supplied I.S. (intrinsically safe) | ||||
| Overall dimensions | Download Specification Sheet | ||||
| Recommended filtration | 100 mesh (150 microns) | ||||
* Maximum flow is to be reduced as viscosity increases, see flow de-rating guide. Max. recommended pressure drop is 100Kpa. (15psi)
** Accuracy + 1% of reading with M - Series mechanical registers and accuracy + 0/5% of reading with V series mechanical register
*** QP and PF options are not available with High-Pressure Meters
Flow Meter Selection
Selecting the right meter for your application. Meters are selected based on flow range, pressure, temperature, material compatibility, and functionality.
FLOMEC® meter options include integral LCD totalisers, flow rate totalisers & batch controllers. These instruments provide monitoring & control outputs including 4~20mA, scaled pulse, alarms & batch control, and are also available with robust mechanical registers:
- BT LCD 5-digit reset, 8-digit cumulative totaliser.
- RT12 LCD 6-digit reset, cumulative totaliser & flow rate. Analogue and Pulse Outputs
- RT40 LCD 6-digit reset, cumulative totaliser & flow rate. Backlit Display
- EB LCD 6 digit 2 stage batcher & cumulative totaliser.
- M / V* = Mechanical registers ( see model numbering )
(Instruments are also available for remote mounting and with I.S. approvals)
Download
For more information on specifications and product configuration
DOWNLOAD PDF of the OM Series Medium Capacity Flowmeter by Flomec
